01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

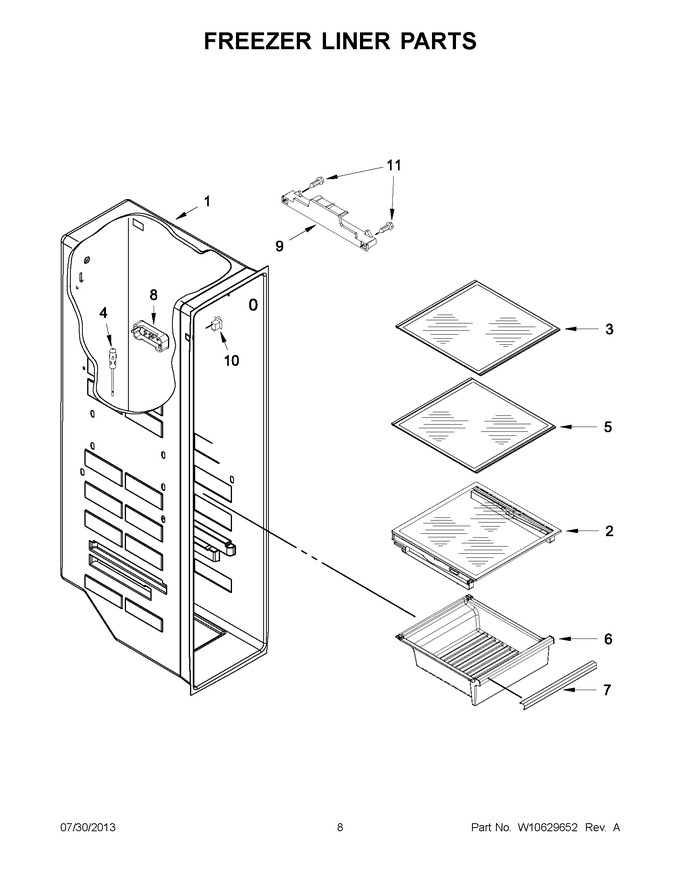

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Parts


09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10836801		Cover Assembly   (Replaces: W10527863)				$ 192.37
3	W11130202		Shelf, Glass Upper   (Replaces: W10527848)				$ 235.29
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	W11130203		Shelf, Glass Lower   (Replaces: W10527849)				$ 235.29
6	W11106313		Pan, Freezer Upper (also Order Item 7)   (Replaces: W10260983)				$ 123.17
7	W11236850		Trim, Handle   (Replaces: W10260986)		Appelez-nous	-
8	WPW10425252		Cover, Thermistor   (Replaces: W10425252)			Immediately	$ 88.38
9	W10294289		Slide, Container		Appelez-nous	-
10	W11457217		Switch, Rocker Arm, Combination(freezer)   (Replaces: 1115373)				$ 40.09
11	718257		Screw   (Replaces: 489100)		Appelez-nous	-
