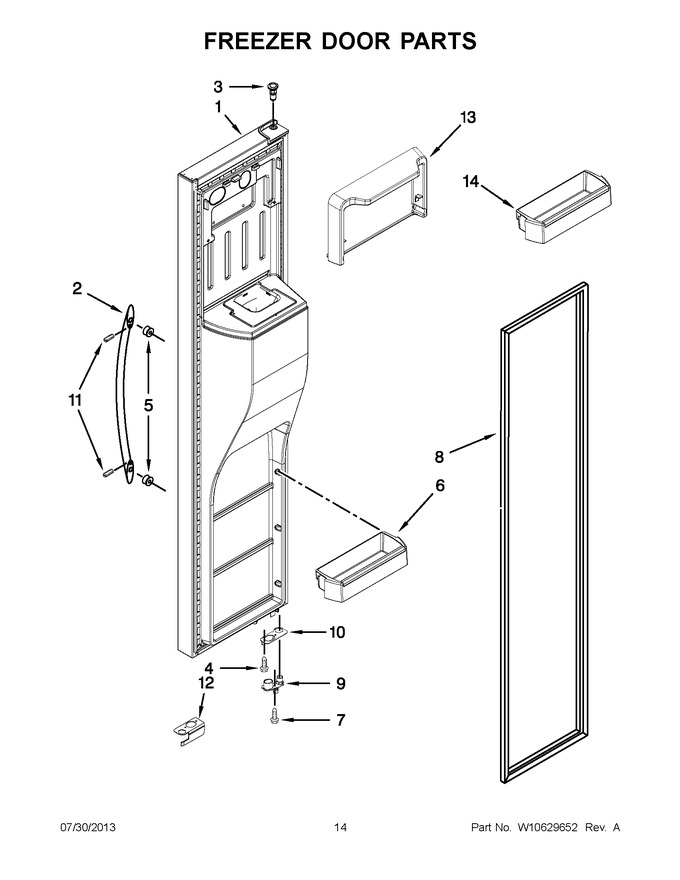

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10562459 | Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Stainless) |
|
- | |||||
| 2 | W10899551 | Handle (brushed Aluminum) (Replaces: W10407272) |
|
Immediately | $ 188.82 | ||||
| 3 | WP2182181 | Thimble-top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | WPW10296857 | Door Bin (Replaces: W10296857) |
|
$ 81.31 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 8 | WPW10355585 | Door Gasket, Magnetic (grey) (Replaces: W10249917) |
|
$ 337.27 | |||||
| 9 | WPW10257206 | Door Closer, Upper Cam (grey) (Replaces: W10257206) |
|
Immediately | $ 13.18 | ||||
| 10 | W11293380 | Bracket, Door Stop (black) (Replaces: W10247907) |
|
$ 69.21 | |||||
| 11 | W11366418 | Screw, Silver (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 12 | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10257223) |
|
$ 7.55 | |||||
| 13 | W10314925 | Half Bin Housing |
|
- | |||||
| 14 | W10316652 | Bin, Door |
|
$ 98.04 |
