Diagram # Part Number Description Series Availability Ships Price Add to Cart
135 WB02K10222 Clip Window Appelez-nous -
139 WB02K10300 Bracket Glowbar Appelez-nous -
139 WB02K10299 Bracket Glowbar Appelez-nous -
154 WB28K10653 Burner Broil Appelez-nous -
155 WB49K10020 Grid Pan Broil Appelez-nous -
158 WB49K10017 Rack Broiler Pan Appelez-nous -
160 WB48K10020 Rack Convection Roast Appelez-nous -
163 WB48K10024 Oven Rack Appelez-nous -
166 WB08K10016 Lamp Halogen Asm Appelez-nous -
172 WB02T10298 Reflector Light Appelez-nous -
173 WB02K10307 Clip Wire Appelez-nous -
173 WG02F00848 Lamp Halogen 20w   (Replaces: WB25T10064) In-Stock Immediately $ 20.65

174 WB02T10297 Clip Retainer Glass Appelez-nous -
175 WB02T10300 Cover Base Appelez-nous -
182 WB02T10299 Base Ceramic G6.35 450c Appelez-nous -
186 WB28K10654 Burner Broil Appelez-nous -
201 WB49K10018 Pan Broiler Appelez-nous -
202 WB04K10031 Gasket Frame Front Appelez-nous -
202 WB48K10021 Pan Broil Appelez-nous -
220 WB35K10198 Oven Bottom Appelez-nous -
240 WS01F07248 Igniter Glowbar Broil   (Replaces: WB13K10020) In-Stock Immediately $ 108.10

241 WS01F07251 Igniter Glowbar   (Replaces: WB13K10040) In-Stock Immediately $ 222.39

242 WS01F02431 Sensor Asm   (Replaces: WB21T10007) In-Stock Immediately $ 30.20

242 WB21T10019 Sensor Asm Appelez-nous -
259 WG02L02869 Crystal Lamp   (Replaces: WB25T10063) Special Order $ 78.41

334 WB02K10309 Elbow Bake Orifice Appelez-nous -
412 WB28K10637 Burner Griddle Appelez-nous -
730 WS01F02632 Probe Thermistor   (Replaces: WB20K10030) In-Stock Immediately $ 93.58

731 WS01F02316 Probe Receptacle   (Replaces: WB20K10032) Special Order $ 135.32

801 WB53K10038 Oven Top Appelez-nous -
805 WB28K10644 Burner Bake Asm Appelez-nous -
806 WS01L06141 Oven Bottom   (Replaces: WB35K10196) Special Order $ 87.41

900 WB02K10306 Elbow Orifice Broil Appelez-nous -
1800 WS01A00252 Wrench   (Replaces: WB02K10265) Special Order $ 14.92

2600 WB53K10037 Oven Top Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

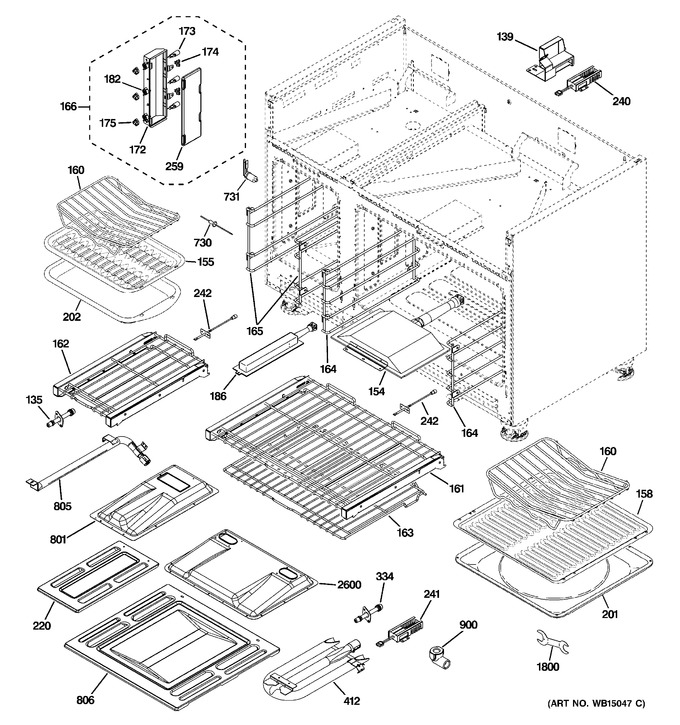

Diagram for ZGP486NRR3SS
