SELECT A DIAGRAM

10 - Door Lock


11 - Large Convection Fan


1 - Gas & Burner Parts


2 - Small Convection Fan


3 - Grill Assembly


4 - Control Panel


5 - Cooktop


6 - Body Parts


7 - Oven Cavity Parts


8 - Large Door Assembly


9 - Small Door Assembly

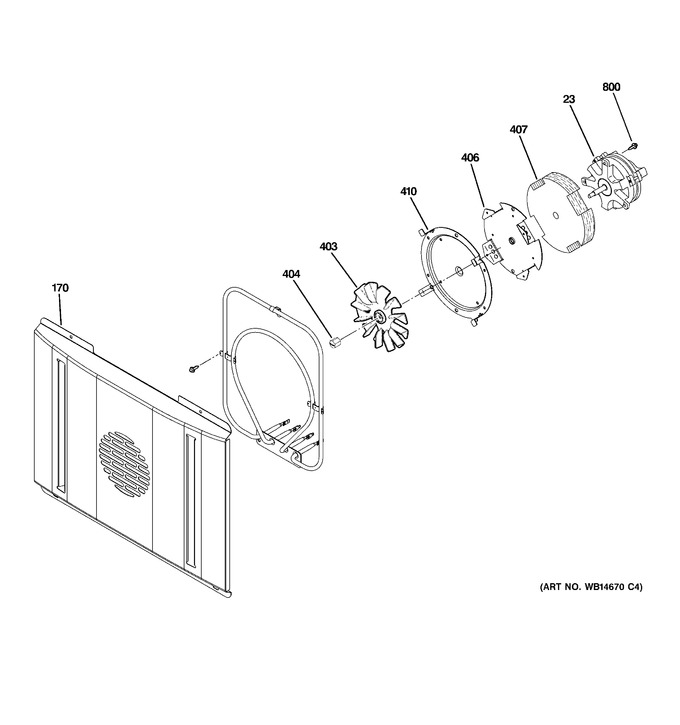

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	WG02F02831		Motor Psc Conv   (Replaces: WB26T10037)				$ 169.32
170	WB02K10199		Cover Fan 27"		Appelez-nous	-
403	WG02F00731		Hub Blade Asm   (Replaces: WB02T10289)			Immediately	$ 36.53
404	WS01A01105		Nut   (Replaces: WB02T10017)			Immediately	$ 9.50
406	WB02T10293		Bracket Convx Mtr Mtg		Appelez-nous	-
407	WB35K10128		Insulation		Appelez-nous	-
410	WB02T10310		Plate Convection		Appelez-nous	-
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
	WS01L03556		Panel Side				$ 148.09
	WS01L01960		Relay Board Asm			Immediately	$ 170.27
	WS01L01959		Relay Board Asm				$ 205.55
	WS01F07600		Lampe Halog├#ne, Monogram   (Replaces: WS01F03816)			Immediately	$ 412.55
	WS01F02621		Control Display Module				$ 110.09
	WS01F02430		Sensor Asm				$ 4.31
	WS01F01658		Interrupteur				$ 78.75
	WS01F00871		Encoder Asm				$ 345.97
	WG02F02831		Moteur				$ 169.32

    View Diagram in Separate Window       Print Part List
