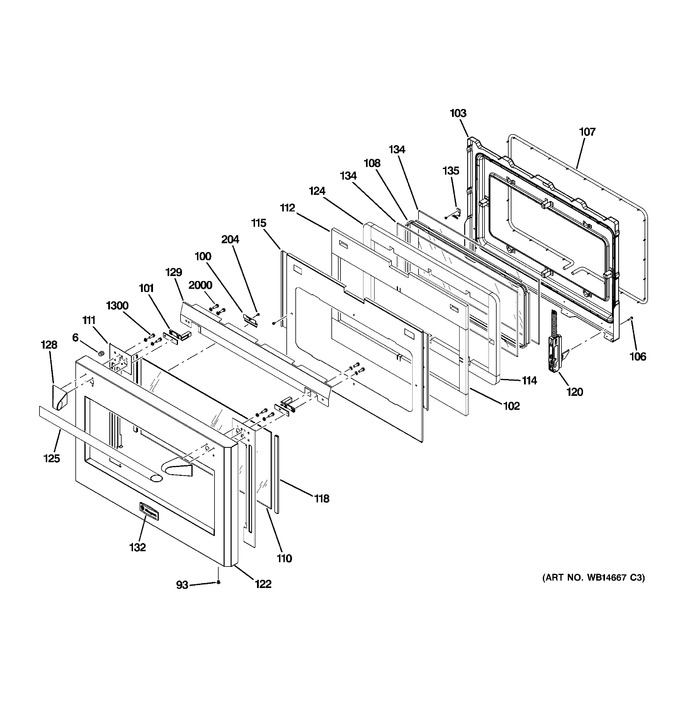

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | WS01F02074 | Set Screw (Replaces: WR02X11754) |
|
$ 15.44 | |||||
| 100 | WB02K10218 | Bracket Glass |
|
- | |||||
| 101 | WB02K10219 | Cap End Extension |
|
- | |||||
| 102 | WB35K10129 | Ft Insul Door Side |
|
- | |||||
| 103 | WB55K10061 | Liner Oven Door Asm 27 |
|
- | |||||
| 106 | WB01K10089 | Scr 10-32 Tr T 7/8 S |
|
- | |||||
| 107 | WB02K10221 | Gasket Door 27" |
|
- | |||||
| 107 | WB02K10220 | Gasket Door 12" |
|
- | |||||
| 108 | WB34K10109 | Spacer Window |
|
- | |||||
| 110 | WB57K10135 | Glass Door 27" |
|
- | |||||
| 111 | WB07K10380 | Support Outer Glass Lf |
|
- | |||||
| 111 | WB07K10379 | Support Outer Glass Rt |
|
- | |||||
| 112 | WB35K10130 | Ft Insul Door Top 27" |
|
- | |||||
| 112 | WB35K10131 | Ft Insul Door Btm 27" |
|
- | |||||
| 114 | WB35K10133 | Rr Insul Door Top 27" |
|
- | |||||
| 114 | WB35K10134 | Rr Insul Door Btm 27" |
|
- | |||||
| 115 | WB55K10059 | Guard Insulation |
|
- | |||||
| 118 | WB04K10028 | Pad Door |
|
- | |||||
| 120 | WB10K10015 | Hinge Door Rt(48) |
|
- | |||||
| 120 | WB10K10016 | Hinge Door Lt(48) |
|
- | |||||
| 122 | WB56K10088 | Panel Oven Door Large |
|
- | |||||
| 124 | WB35K10132 | Rr Insul Door Side |
|
- | |||||
| 125 | WB15K10090 | Bar Handle 27" |
|
- | |||||
| 128 | WS01L06952 | Cap End (Replaces: WR02X12344) |
|
$ 111.02 | |||||
| 129 | WB02K10260 | Heat Deflector |
|
- | |||||
| 129 | WB02K10261 | Heat Deflector 12" |
|
- | |||||
| 132 | WS01A00367 | Monogram Badge (Replaces: WB02K10295) |
|
$ 12.40 | |||||
| 134 | WB57K10138 | Glass Door |
|
- | |||||
| 134 | WB57K10151 | Glass Door |
|
- | |||||
| 135 | WB02K10222 | Clip Window |
|
- | |||||
| 204 | WS01A00654 | Screw (blk) (Replaces: WB1K42) |
|
$ 15.88 | |||||
| 1300 | WB01K10088 | Scr 1/4-20 Tt Hxws 3/4 S |
|
- | |||||
| 2000 | WB01K10100 | Scr 10-32 Trp 1/2 |
|
- |
