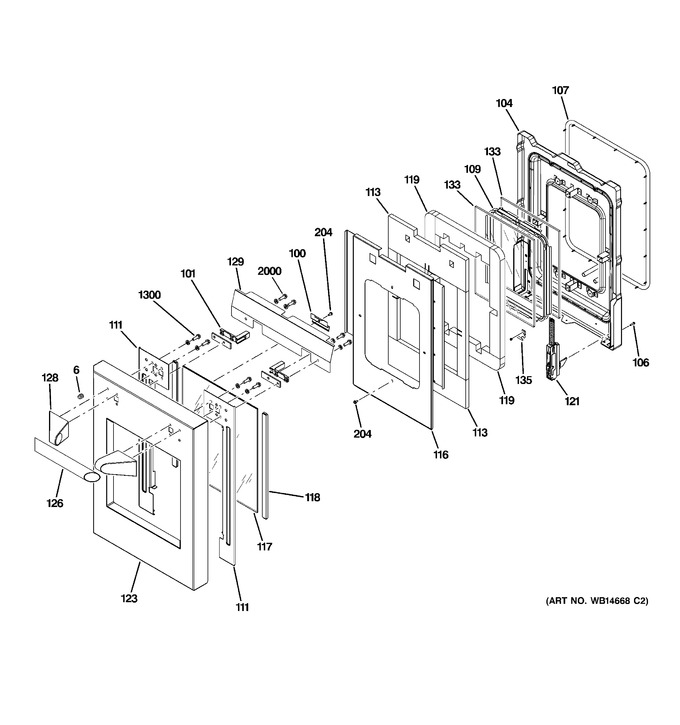

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WS01F02074		Set Screw   (Replaces: WR02X11754)				$ 15.44
100	WB02K10218		Bracket Glass		Appelez-nous	-
101	WB02K10219		Cap End Extension		Appelez-nous	-
104	WB55K10060		Liner Oven Door Asm 12		Appelez-nous	-
106	WB01K10089		Scr 10-32 Tr T 7/8 S		Appelez-nous	-
107	WB02K10221		Gasket Door 27"		Appelez-nous	-
107	WB02K10220		Gasket Door 12"		Appelez-nous	-
109	WB34K10110		Spacer Window		Appelez-nous	-
111	WB07K10379		Support Outer Glass Rt		Appelez-nous	-
111	WB07K10380		Support Outer Glass Lf		Appelez-nous	-
113	WB35K10136		Rr Insul Door Btm 12"		Appelez-nous	-
113	WB35K10135		Ft Insul Door Top 12"		Appelez-nous	-
116	WB55K10058		Guard Insulation		Appelez-nous	-
117	WB57K10136		Glass Door 12"		Appelez-nous	-
118	WB04K10028		Pad Door		Appelez-nous	-
119	WB35K10137		Rr Insul Door Btm 12"		Appelez-nous	-
119	WB35K10138		Rr Insul Door Top 12"		Appelez-nous	-
121	WB10K10013		Hinge Door Rt(12)		Appelez-nous	-
121	WB10K10014		Hinge Door Lt(12)		Appelez-nous	-
123	WB56K10087		Panel Oven Door Small		Appelez-nous	-
126	WB15K10089		Bar Handle 12"		Appelez-nous	-
128	WS01L06952		Cap End   (Replaces: WR02X12344)				$ 111.02
129	WB02K10261		Heat Deflector 12"		Appelez-nous	-
129	WB02K10260		Heat Deflector		Appelez-nous	-
133	WB57K10137		Glass Door		Appelez-nous	-
135	WB02K10222		Clip Window		Appelez-nous	-
204	WS01A00654		Screw (blk)   (Replaces: WB1K42)				$ 15.88
1300	WB01K10088		Scr 1/4-20 Tt Hxws 3/4 S		Appelez-nous	-
2000	WB01K10100		Scr 10-32 Trp 1/2		Appelez-nous	-
