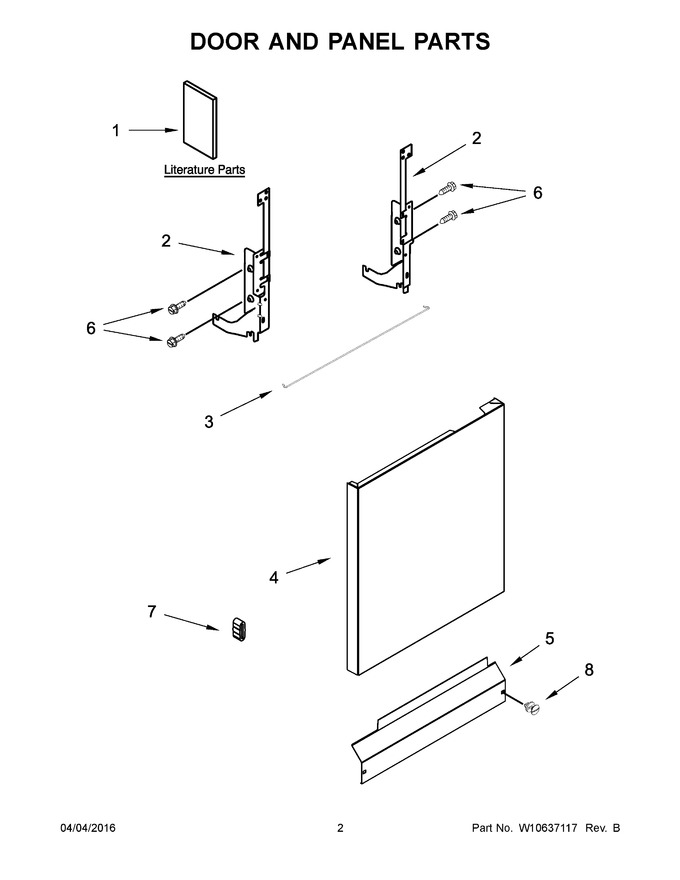

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10435040		Installation Instructions		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	WPW10274890		Panel Front (black)   (Replaces: W10274890)				$ 358.95
5	W11763736		Access Panel (black)   (Replaces: W10441006)			Immediately	$ 42.25
6	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
1A	W10810661		Energy Guide		Appelez-nous	-
1B	W10667782		Use & Care Guide		Appelez-nous	-
1C	W10590893		Tech Sheet, English		Appelez-nous	-
1D	W10590894		Tech Sheet, French		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 83.93
4A	W10274891		Panel Front (white)				$ 133.14
4B	W10274900		Panel Front (stainless)				$ 152.48
5A	WPW10441007		Access Panel (white)   (Replaces: W10441007)				$ 170.94
8A	WPW10503549		Fastener (white)   (Replaces: W10503549)			Immediately	$ 7.77
