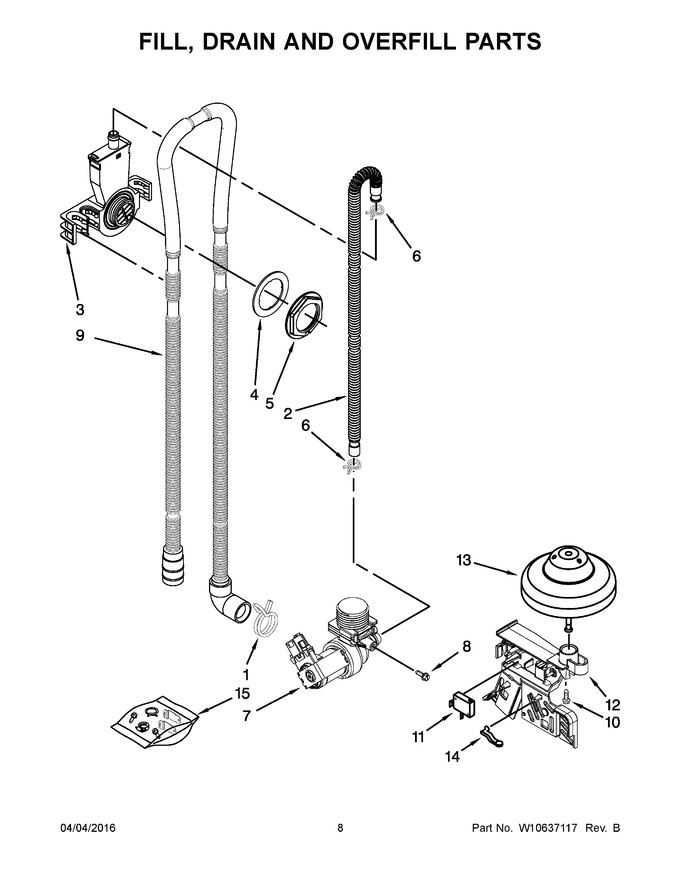

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 8.81 | ||||
| 2 | W10878507 | Hose (Replaces: W10769066) |
|
Immediately | $ 77.06 | ||||
| 3 | WPW10195536 | Inlet, Water (also Order Item 4) (Replaces: W10195536) |
|
Immediately | $ 86.31 | ||||
| 4 | WP8531323 | Gasket (Replaces: 8531323) |
|
Immediately | $ 41.07 | ||||
| 5 | WPW10508676 | Nut, Inlet (also Order Item 4) (Replaces: W10508676) |
|
$ 19.35 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.82 | ||||
| 7 | W11175771 | Fill Valve Assembly (Replaces: W10327250) |
|
Immediately | $ 73.69 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10545278 | Drain Loop With Check Valve Asembly (Replaces: W10545278) |
|
Immediately | $ 74.41 | ||||
| 10 | WP304231 | Screw (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 11 | WPW10195039 | Switch, Overfill Control (Replaces: W10195039) |
|
Immediately | $ 77.42 | ||||
| 12 | WPW10316267 | Standpipe, Overfill (Replaces: W10316267) |
|
$ 31.90 | |||||
| 13 | WPW10345285 | Float & Retainer Assembly (Replaces: W10345285) |
|
$ 89.74 | |||||
| 14 | WPW10195037 | Lever, Overfill Switch (Replaces: W10195037) |
|
Immediately | $ 11.74 | ||||
| 15 | WPW10292152 | Miscellaneous Parts Bag (contains 2 Screws, 2 Clamps, & 2 Brackets) (Replaces: W10292152) |
|
Immediately | $ 43.90 |
