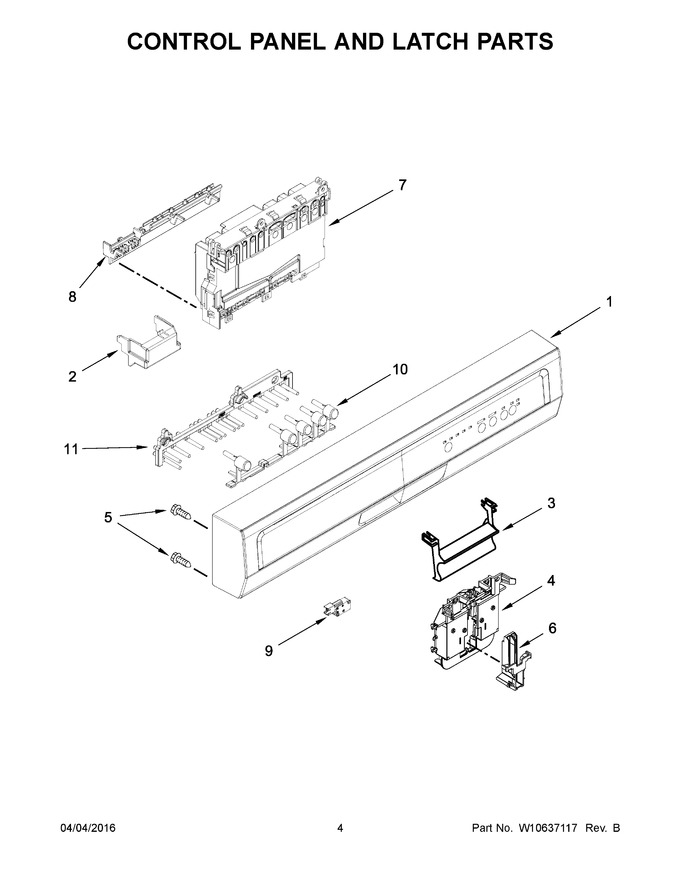

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10531895		Console Assembly (black)   (Replaces: W10577232)				$ 266.87
2	W10783730		Box, Connector   (Replaces: W10756253)				$ 31.41
3	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 131.06
4	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 86.34
5	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 8.41
6	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 111.29
7	W10817282		Control, Electronic   (Replaces: W10711377)			Immediately	$ 112.15
8	WPW10372484		Brace, Connector   (Replaces: W10372484)				$ 23.37
9	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 82.89
10	WPW10274840		Button Tree   (Replaces: W10274840)				$ 19.75
11	W10854407		Light Pipe   (Replaces: W10274836)				$ 90.33
1A	WPW10531896		Console Assembly (white)   (Replaces: W10577233)				$ 289.19
3A	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 127.13

    View Diagram in Separate Window       Print Part List
