Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11838891 Dishrack, Lower   (Replaces: W10525643) In-Stock Immediately $ 175.38

2 WP8268645 Wheel & Transport Assembly   (Replaces: 8268645) In-Stock Immediately $ 62.31

3 W11772520 Basket, Silverware (assembly)   (Replaces: 8562045) In-Stock Immediately $ 63.72


    View Diagram in Separate Window     Print Icon   Print Part List

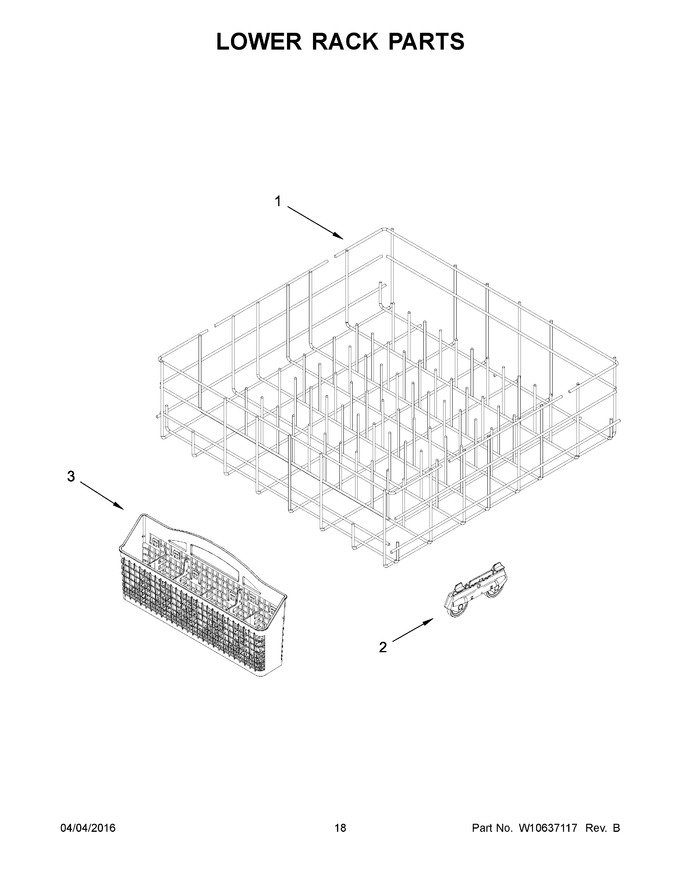

Diagram for ADB1100AWB3
