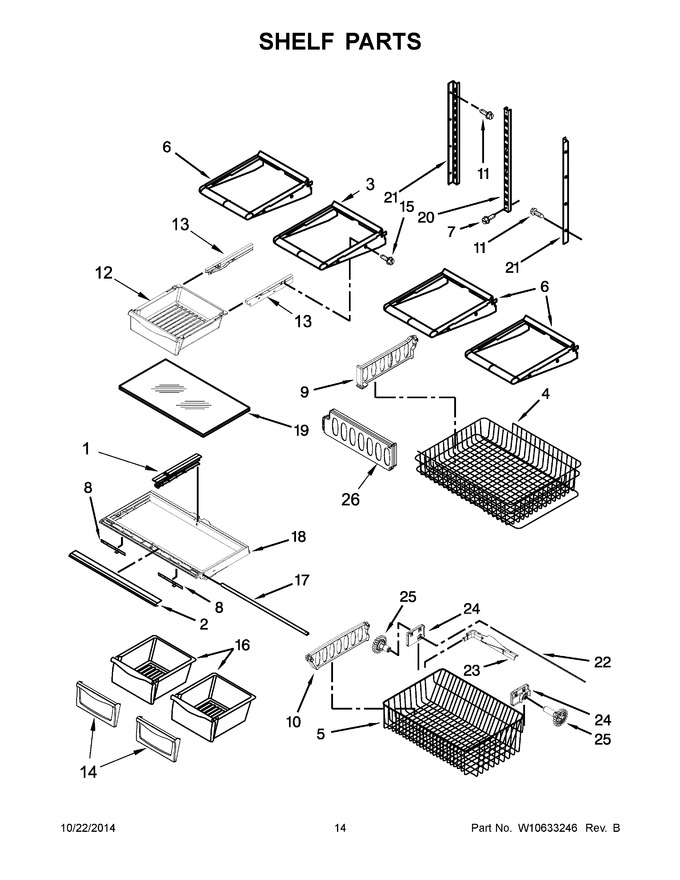

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: W10671238N) |
|
Immediately | $ 112.82 | ||||
| 2 | WPW10231343 | Trim, Crisper (Replaces: W10231343N) |
|
Immediately | $ 99.65 | ||||
| 3 | W11402523 | Shelf (Replaces: 12463509V) |
|
Immediately | $ 221.39 | ||||
| 4 | W10348238 | Basket, Freezer (upper) |
|
$ 217.27 | |||||
| 5 | WPW10503183 | Basket, Freezer (lower) (Replaces: W10503183) |
|
Immediately | $ 237.48 | ||||
| 6 | W11402523 | Shelf, Stationary (Replaces: 12463509) |
|
Immediately | $ 221.39 | ||||
| 7 | W10215666 | Screw |
|
$ 9.08 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 9 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 27.80 | ||||
| 10 | W10847995 | Divider, Basket (lower) (Replaces: W10146440) |
|
$ 88.08 | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 12 | WP67001314 | Pan, Deli (Replaces: 12656404V) |
|
$ 155.33 | |||||
| 13 | WP67001054 | Glide, Deli (left Hand) (Replaces: 12656601V) |
|
Immediately | $ 8.40 | ||||
| 14 | 12643702 | Frame, Crisper Pan |
|
Immediately | $ 41.88 | ||||
| 15 | W11233072 | Screw (Replaces: 12990302V) |
|
Immediately | $ 14.02 | ||||
| 16 | WP67002633 | Pan, Crisper (Replaces: 12530505N) |
|
Immediately | $ 149.12 | ||||
| 17 | WP12227303WD | Brace, Crisper Cover (Replaces: 12227303WD) |
|
$ 105.95 | |||||
| 18 | W10858393 | Frame, Crisper (Replaces: W10671241) |
|
Immediately | $ 143.78 | ||||
| 19 | WP67006878 | Glass, Crisper (Replaces: 12204822N) |
|
Immediately | $ 185.19 | ||||
| 20 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 21 | W10251969 | Ladder, Side |
|
$ 29.94 | |||||
| 22 | W10802339 | Shaft, Rack (Replaces: 12812905WD) |
|
$ 99.21 | |||||
| 23 | W10149389 | Lift, Bail Arm (Replaces: W10149389N) |
|
$ 88.25 | |||||
| 24 | W10348259 | Mount, Gear (left Hand) |
|
$ 85.59 | |||||
| 25 | WPW10474716 | Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 30.88 | ||||
| 26 | W10311695 | Divider, Basket (upper) |
|
$ 28.76 | |||||
| 13A | WP67001053 | Glide, Deli (right Hand) (Replaces: 12656602V) |
|
Immediately | $ 9.24 | ||||
| 24A | W10348260 | Mount, Gear (right Hand) |
|
$ 85.62 | |||||
| 25A | WPW10474715 | Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 31.20 |
