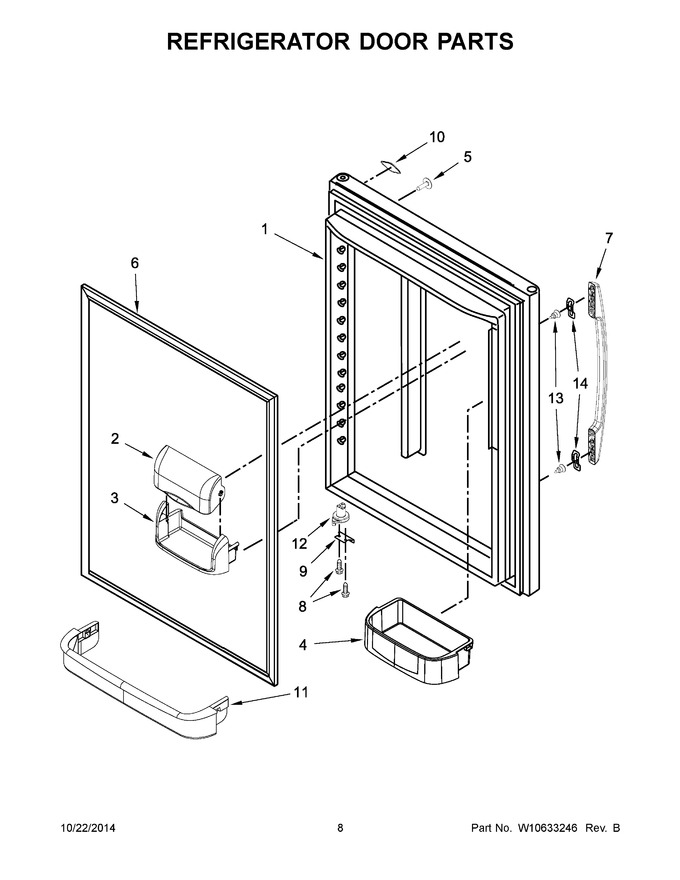

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109401WQ | Door, Refrigerator (white) (Replaces: 13109401W) |
|
$ 1,073.65 | |||||
| 2 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 3 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 4 | 67004040 | Bucket, Medium (Replaces: 12801902) |
|
$ 95.99 | |||||
| 5 | WP67001130 | Plug, Button (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 6 | W10443313 | Gasket, Door (white) (Replaces: W10571964) |
|
$ 361.01 | |||||
| 7 | WPW10252284A | Handle, Door (white) (Replaces: W10252284N) |
|
$ 76.28 | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 9 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 10 | WPW10170766 | Badge (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 11 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 112.90 | ||||
| 12 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 13 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 14 | WP2255411 | Clip, Handle Mount (Replaces: 2255411) |
|
$ 36.55 | |||||
| 12A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 1A | 13109401BQ | Door, Refrigerator (black) (Replaces: 13109401B) |
|
$ 1,073.65 | |||||
| 1B | 13107545SQ | Door, Refrigerator Mbl2258xes6 (stainless (left Hand)) (Replaces: 13107545S) |
|
$ 1,161.07 | |||||
| 1C | 13107548S | Door, Refrigerator Mbr2258xes6 (stainless (right Hand)) |
|
- | |||||
| 5A | WP12246608 | Plug, Button (black) (Replaces: 12246608) |
|
Immediately | $ 8.15 | ||||
| 6A | WPW10436248 | Gasket, Door (black) (Replaces: W10436248) |
|
$ 286.97 | |||||
| 7A | W10252285N | Handle, Door (black) |
|
- | |||||
| 7B | W10252288A | Handle, Door (stainless) (Replaces: W10252288N) |
|
$ 129.86 | |||||
| 9A | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 |
