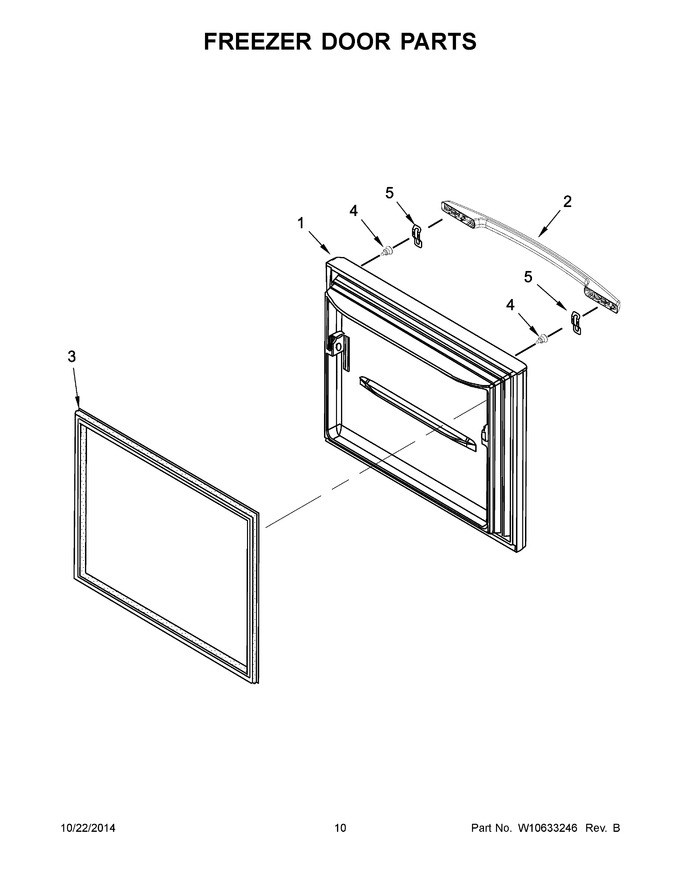

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109214WQ | Door, Freezer (white) (Replaces: 13109214W) |
|
$ 954.03 | |||||
| 2 | WPW10252284A | Handle, Door (white) (Replaces: W10252284N) |
|
$ 76.28 | |||||
| 3 | W10443315 | Gasket, Door (white) (Replaces: W10571962N) |
|
$ 193.98 | |||||
| 4 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 5 | WP2255411 | Clip, Handle Mount (Replaces: 2255411) |
|
$ 36.55 | |||||
| 1A | 13109214BQ | Door, Freezer (black) (Replaces: 13109214B) |
|
$ 939.62 | |||||
| 1B | 13109217SQ | Door, Freezer (stainless) (Replaces: 13109217S) |
|
Immediately | $ 1,095.95 | ||||
| 2A | W10252285N | Handle, Door (black) |
|
- | |||||
| 2B | W10252288A | Handle, Door (stainless) (Replaces: W10252288N) |
|
$ 129.86 | |||||
| 3A | WPW10436250 | Gasket, Door (black) (Replaces: W10436250) |
|
Immediately | $ 365.39 |
