SELECT A DIAGRAM
New Model Search:

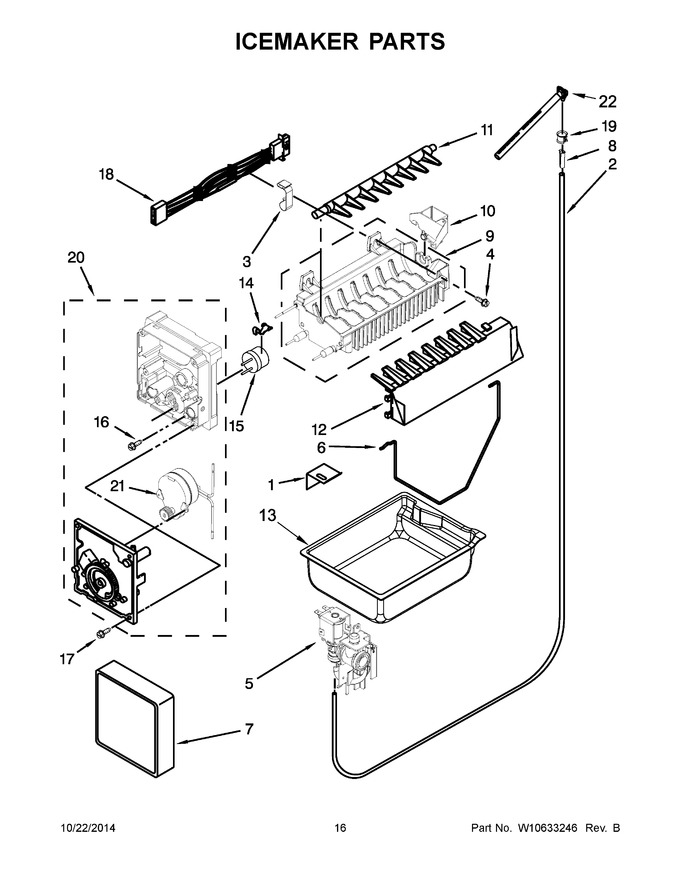

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Ice Maker (Replaces: 2256086) |
|
$ 97.65 | |||||
| 2 | W11120581 | Tubing, Plastic (Replaces: B5705333) |
|
$ 124.93 | |||||
| 3 | 10526702 | Clamp, Wire |
|
- | |||||
| 4 | W10001240 | Screw |
|
$ 9.22 | |||||
| 5 | WPW10498976 | Valve, Inlet (Replaces: W10498976) |
|
Immediately | $ 126.10 | ||||
| 6 | W11559683 | Arm, Shut Off (Replaces: W10512602) |
|
$ 71.20 | |||||
| 7 | W10377174 | Cover, Front |
|
$ 81.33 | |||||
| 8 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 | ||||
| 9 | WPW10300025 | Assembly, Mold And Heater (Replaces: W10300025) |
|
Immediately | $ 201.92 | ||||
| 10 | W10410073 | Cup, Water Fill |
|
$ 84.07 | |||||
| 11 | W10318914 | Ejector |
|
$ 38.08 | |||||
| 12 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 99.42 | |||||
| 13 | WPW10171529 | Pan, Ice (Replaces: W10171529N) |
|
Immediately | $ 189.55 | ||||
| 14 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 15 | WP627985 | Thermostat (Replaces: 627985) |
|
$ 114.64 | |||||
| 16 | 8533917 | Screw |
|
$ 14.04 | |||||
| 17 | WP489478 | Screw (Replaces: W10001260) |
|
$ 8.18 | |||||
| 18 | WPW10458985 | Harness, Ice Maker (Replaces: W10458985) |
|
$ 111.35 | |||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 20 | WPW10281342 | Assembly, Module And Motor (Replaces: W10281342) |
|
$ 280.48 | |||||
| 21 | N/P | Motor (not Available, Order #20) |
|
- | |||||
| 22 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 119.86 | ||||
| 100 | W10884390 | Assembly, Icemaker (complete) (Replaces: W10469286) |
|
Immediately | $ 149.65 |
