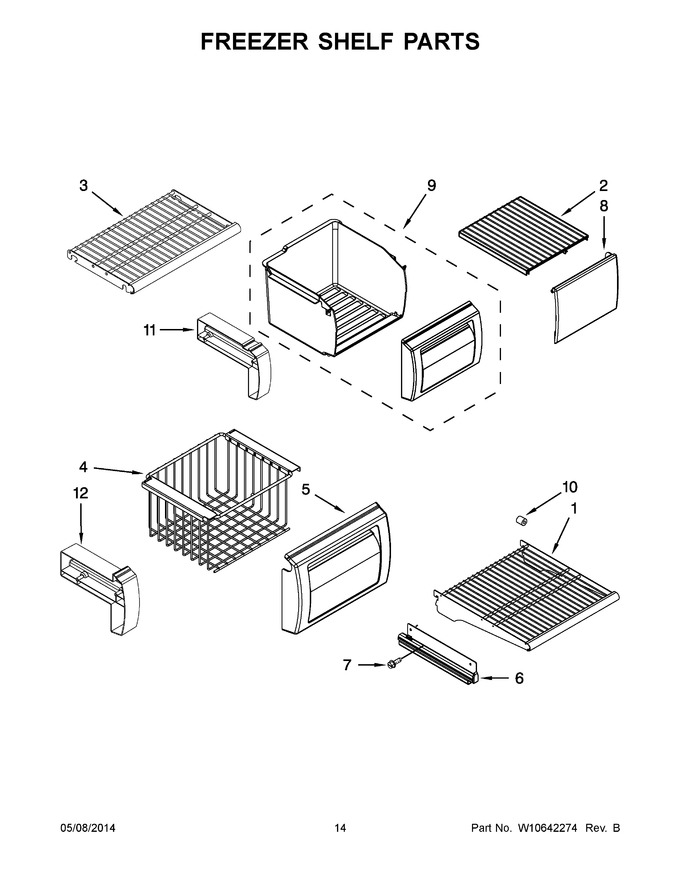

08 - Freezer Shelf Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Top Grille And Unit Cover Parts


12 - Upper Unit Parts


13 - Lower Unit And Tube Parts


14 - Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175905		Shelf, Wire				$ 112.50
2	W10213534		Cover, Shelf		Appelez-nous	-
3	2302883		Shelf, Fixed				$ 178.87
4	2259081		Basket, Freezer				$ 343.12
5	WP2256269		Assembly, Basket Front   (Replaces: 2256269)				$ 176.30
6	WP2259318		Slide, Basket (left Hand)   (Replaces: 2259318)			Immediately	$ 317.35
6	2259317		Slide, Basket (right Hand)				$ 233.29
7	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 8.26
8	WP2266934		Door, Ice   (Replaces: 2266934)				$ 296.67
9	2266930		Bucket, Ice		Appelez-nous	-
10	2266955		Spacer, Ice Door		Appelez-nous	-
11	W10188511		Spacer, Ice Bucket		Appelez-nous	-
12	W10188539		Spacer, Basket		Appelez-nous	-
