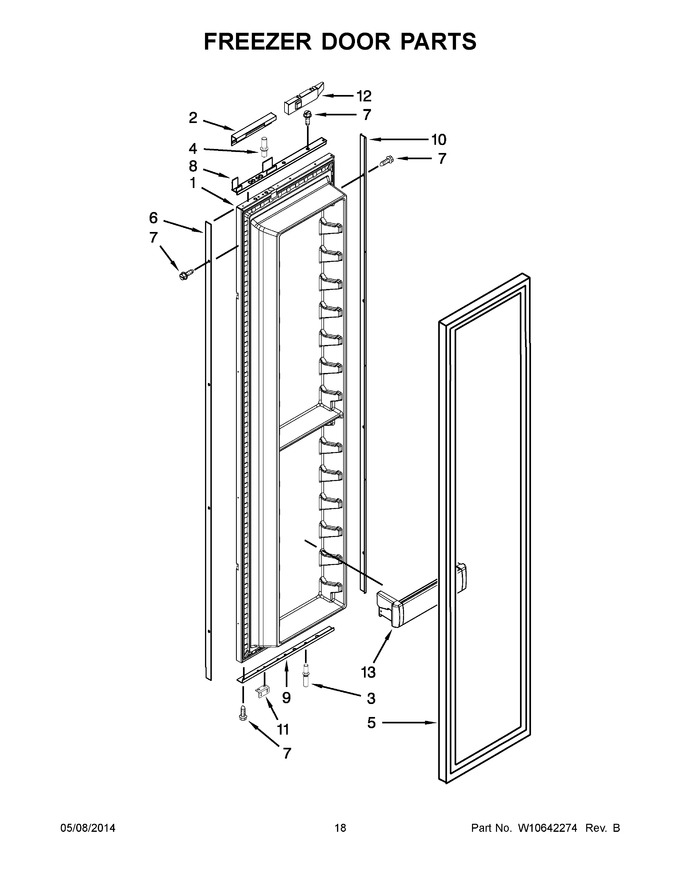

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167378		Freezer Door		Appelez-nous	-
2	W10199886		Cover-door, Top				$ 109.28
3	W11337869		Pin, Bottom Door   (Replaces: W10234206)				$ 64.91
4	W10234194		Pin, Top Door				$ 17.66
5	WP2266905		Gasket, Door   (Replaces: 2222814)				$ 329.66
6	W10182700		Trim, Door (handle Side)		Appelez-nous	-
7	W10825422		Screw (white)   (Replaces: 8281251)				$ 11.36
8	W10182705		Door Trim, Top		Appelez-nous	-
9	W10182709		Door Trim, Bottom		Appelez-nous	-
10	W10182685		Trim, Door (hinge Side)		Appelez-nous	-
11	W10199955		Bracket, Panel Mounting				$ 93.88
12	W10197766		Insert-door, Arm (bottom)				$ 17.26
12	W10197748		Insert-door, Arm (top)				$ 18.83
13	W10323602		Bin, Shallow				$ 98.03

    View Diagram in Separate Window       Print Part List
