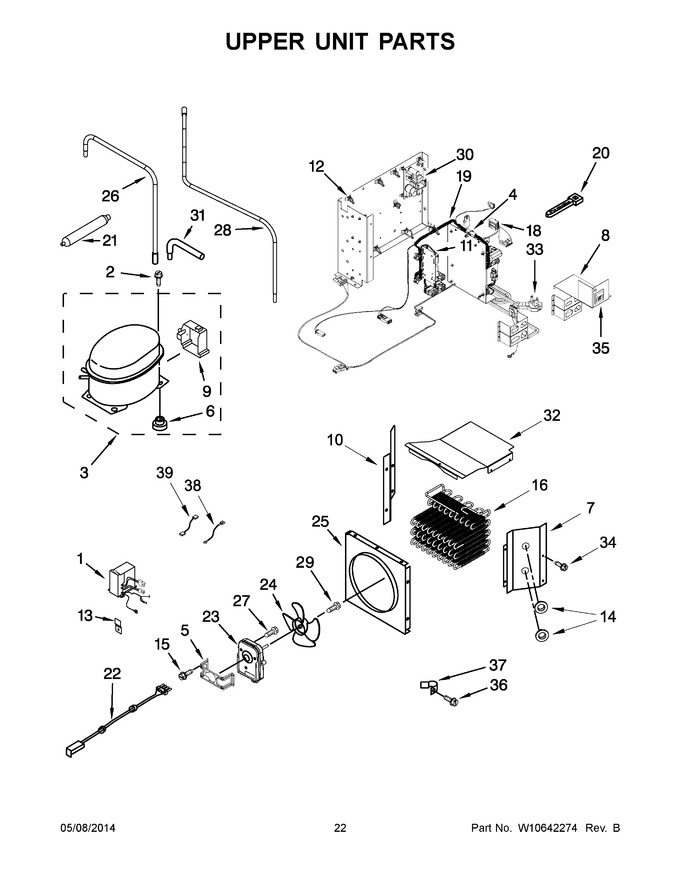

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10449006		Assembly, Inverter Box   (Replaces: W10449006)				$ 386.03
2	876811		Screw   (Replaces: 489373)				$ 7.79
3	W10841139		Compressor   (Replaces: W10173296)			Immediately	$ 505.51
4	WPW10200659		Control, Electronic   (Replaces: W10200659)			Immediately	$ 355.73
5	W10414681		Bracket, Fan Motor				$ 79.53
6	876811		Grommet   (Replaces: 1100826)				$ 7.79
7	WPW10525179		Support, Condenser (right Hand)   (Replaces: W10525179)				$ 110.88
8	W10209446		Support, Condenser (bracket, Mounting (power Switch))		Appelez-nous	-
9	2215676		Cover, Terminal				$ 94.36
10	WPW10525177		Support, Condenser (left Hand)   (Replaces: W10525177)				$ 110.88
11	WPW10356040		Control, Electronic   (Replaces: W10356040)			Immediately	$ 322.82
12	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 18.81
13	2256328		Bracket, Inverter Mounting		Appelez-nous	-
14	W10587113		Grommet		Appelez-nous	-
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
16	W10591457		Condenser				$ 248.55
18	W10209460		Harness, Dc Unit		Appelez-nous	-
19	W10209462		Harness, Ac Unit		Appelez-nous	-
20	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 8.30
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 30.78
22	2310207		Assembly, Condenser Fan Wire		Appelez-nous	-
23	W11578915		Motor, Condenser   (Replaces: 2188875)			Immediately	$ 71.42
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 99.82
25	W10415670		Orifice, Fan		Appelez-nous	-
26	W10624944		Tube, Drier Transition				$ 35.25
27	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
28	W10625009		Tube, Heat Loop Transition				$ 116.14
29	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
30	WPW10184634		Control, Electronic   (Replaces: W10184634)				$ 434.29
31	W10528578		Tube, Process				$ 39.82
32	W10525175		Top Cover, Condenser				$ 72.38
33	2310196		Service Cord			Immediately	$ 88.52
34	W11624204		Screw   (Replaces: 486194)				$ 14.72
35	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 109.08
36	00487294		Screw   (Replaces: 487294)				$ 175.09
37	549193		Clamp, Power Cord				$ 14.06
38	WPW10495645		Ground, Inverter   (Replaces: W10495645)				$ 12.69
39	WPW10483905		Jumper, Inverter   (Replaces: W10483905)				$ 119.45
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 137.25
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	N/P		Refrigerant Charge 6.75 Oz. (r-134a)		Appelez-nous	-
NI	978026		Valve, Access			Immediately	$ 134.49
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 110.51
NI	876764		Valve, Access			Immediately	$ 95.92
