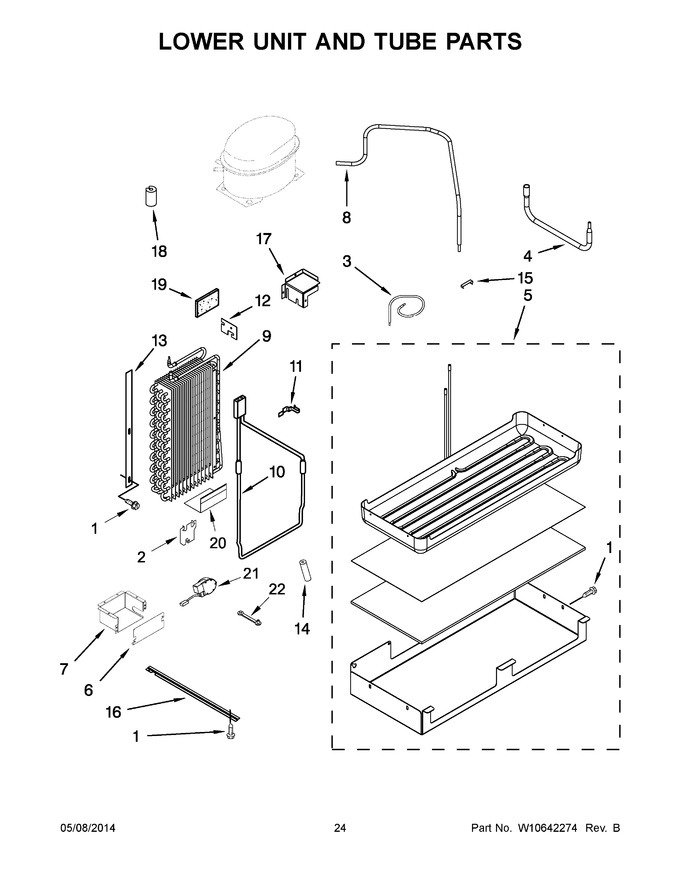

13 - Lower Unit And Tube Parts


14 - Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11624204		Screw   (Replaces: 486194)				$ 14.72
2	W10157752		Bracket, Heater		Appelez-nous	-
3	W10306442		Tube, Oil Trap Suction		Appelez-nous	-
4	W10388653		Tube, Transition (drier/restrictor)			Immediately	$ 40.48
5	W11623101		Assembly, Drain Pan   (Replaces: W10281063)			Immediately	$ 394.02
6	W11756952		Cover, Wire Box   (Replaces: W10321048)		Appelez-nous	-
7	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 81.52
8	W10412488		Tube, Discharge				$ 120.68
9	WPW10427992		Evaporator   (Replaces: W10427992)				$ 366.81
10	W11812025		Heater, Defrost   (Replaces: W10140161)				$ 76.48
11	1113048		Clamp, Heater		Appelez-nous	-
12	W10139908		Cover, Evaporator Seal				$ 13.06
13	W10432308		Gasket, Evaporator		Appelez-nous	-
14	2215648		Dampener				$ 13.21
15	W10169509		Clip, Heat Exchanger		Appelez-nous	-
16	2320554		Support, Drain Pan		Appelez-nous	-
17	W10160981		Assembly, Air Return Bracket		Appelez-nous	-
18	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
19	W11553819		Sealer, Insulation   (Replaces: 2169104)			Immediately	$ 14.77
20	W10321050		Shelf, Wiring Cover		Appelez-nous	-
21	W11671461		Motor, Fan   (Replaces: W10436861)			Immediately	$ 206.52
22	W11671528		Grommet, Motor   (Replaces: W10321090)		Appelez-nous	-
