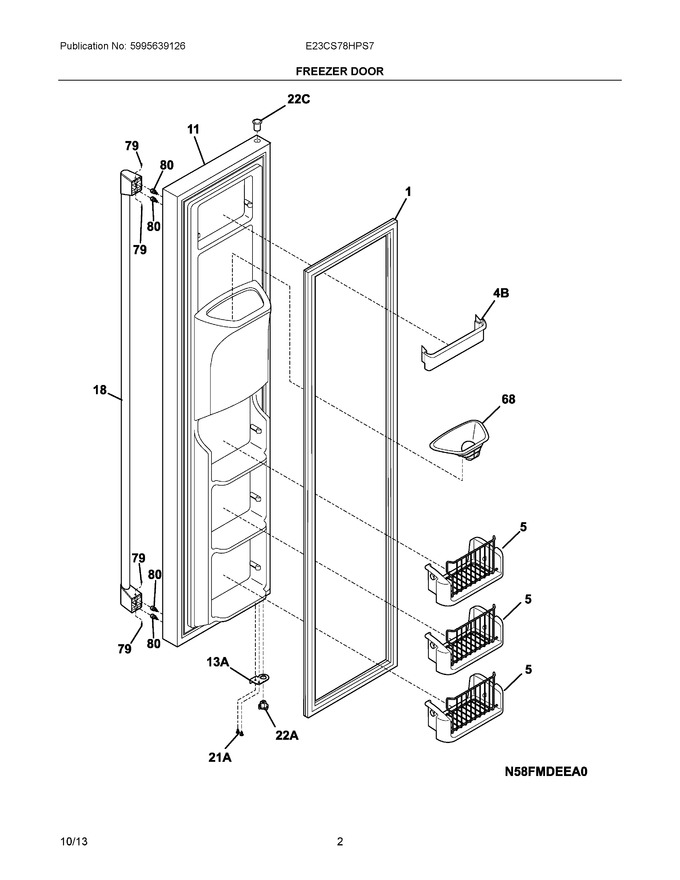

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241510202		Gasket-frzr Door, White, Magnetic				$ 318.37
5	241545006		Bin-tilt Out, Tilt-out		Appelez-nous	-
11	241526772		Door-frzr, Stainless, Complete Assy				$ 684.13
18	241637921		Handle Assembly, Stainless, W/endcaps		Appelez-nous	-
68	241525101		Chute-ice				$ 91.39
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 27.80
80	218755504		Screw-shoulder, #10 Ab, Handle Mounting			Immediately	$ 21.74
13A	240581906		Door Stop, Black, Frzr				$ 81.11
21A	240521303		Screw, #10-16 X 1/2   (Replaces: 240521301)			Immediately	$ 33.55
22A	242000502		Bearing-hinge, Black, Lower				$ 7.98
22C	240328404		Bearing-hinge, Black, Upper				$ 25.41
4B	241511701		Bin-door, Frzr-upper   (Replaces: 241808218)			Immediately	$ 74.68
NI	5303918273		Dispenser Heater Kit, 220 Volt		Appelez-nous	-
NI	240451503		Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe				$ 4.21
NI	241806601		Connector-water, Straight			Immediately	$ 78.40
NI	241599703		Harness-wiring, Door		Appelez-nous	-
NIA	241601001		Wrench, Allen		Appelez-nous	-
