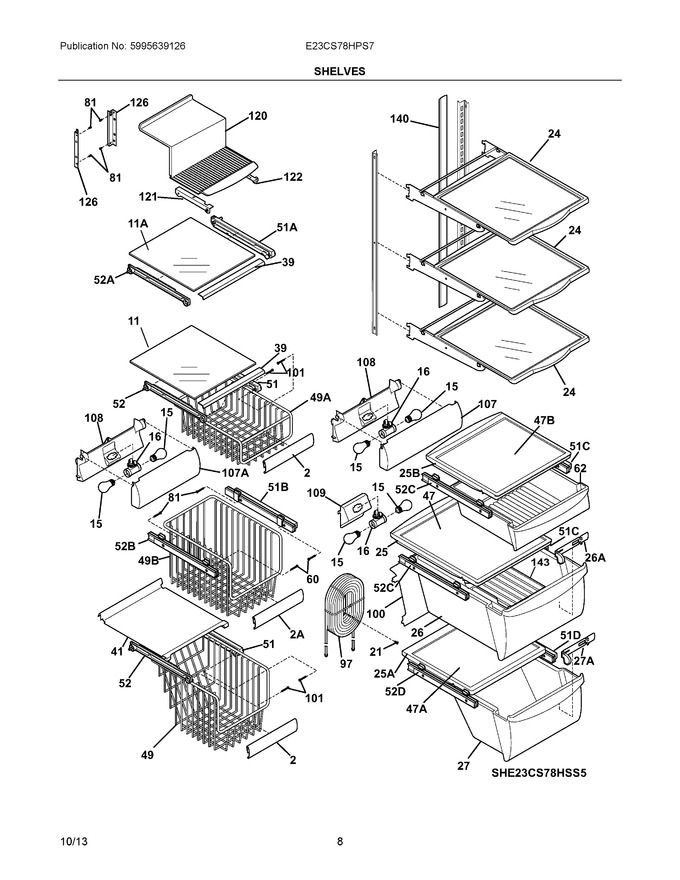

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241539502		Trim-basket				$ 34.45
11	241711213		Shelf-freezer, Glass, Lower   (Replaces: 240443357)				$ 96.06
15	5304517886		Light Bulb   (Replaces: 241552807)			Immediately	$ 82.76
16	241622802		Socket-light, Frz Light				$ 73.25
21	218843801		Screw, Hx Wshr Hd Sems, 8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
24	241753102		Shelf-"spill-safe", Cantilever, Sliding				$ 449.55
25	241565002		Cover-crisper Pan, Upper				$ 159.44
26	240351049		Pan-crisper, Upper				$ 108.75
27	240351240		Pan-crisper, Lower   (Replaces: 240351225)				$ 226.05
39	240367604		Trim-shelf, Front				$ 128.10
41	241637601		Baffle-air				$ 87.05
47	240350649		Insert-pan Cover, Glass			Immediately	$ 137.66
49	241541802		Basket-sliding		Appelez-nous	-
51	241514501		Hanger-basket, Rh				$ 81.90
52	241514601		Hanger-basket, Lh				$ 85.05
60	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 13.39
62	240599706		Pan-meat			Immediately	$ 398.51
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
97	241532005		Water Tank				$ 167.69
100	240326304		Cover-water Tank				$ 81.74
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 14.96
107	241513402		Shield-light, Meat Pan				$ 59.90
108	241513301		Cover-wiring, Meat Pan Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241691701		Shelf-ice Cream				$ 82.69
121	241504701		Rail-ice Cream Shelf, Lh				$ 71.66
122	241504702		Rail-ice Cream Shelf, Rh				$ 83.42
126	241674401		Channel, Auger Mtg, Lh				$ 52.76
140	240430505		Channel, Wtr Tube Cover				$ 68.38
143	240423305		Divider-crisper Pan				$ 123.17
107A	241521802		Shield-light, Frzr				$ 31.38
11A	240443358		Shelf-freezer, Glass, Upper				$ 107.86
126A	241674402		Channel, Auger Mtg, Rh				$ 48.04
25A	241564301		Cover-crisper Pan, Lower				$ 99.23
25B	241565701		Cover-meat Pan				$ 99.06
26A	241638201		Control-humidity				$ 17.69
27A	240362201		Control-humidity				$ 77.18
2A	241539501		Trim-basket		Appelez-nous	-
47A	240350603		Insert-pan Cover, Glass			Immediately	$ 128.36
47B	240443391		Insert-pan Cover, Glass   (Replaces: 240443356)			Immediately	$ 137.35
49A	241541902		Basket-sliding, Upper, Half		Appelez-nous	-
49B	241541702		Basket-sliding, Mid		Appelez-nous	-
51A	241514701		Hanger-shelf Glass, Rh				$ 70.88
51B	240579803		Hanger-basket, Rh				$ 85.05
51C	240579821		Hanger-basket, 13.00, Rh   (Replaces: 240579807)			Immediately	$ 139.39
51D	240579822		Hanger-basket, 10.19, Rh				$ 113.40
52A	241514801		Hanger-shelf Glass, Lh				$ 381.94
52B	240579804		Hanger-basket, Lh				$ 92.56
52C	240579819		Hanger-basket, 13.00, Lh				$ 125.55
52D	240579820		Hanger-basket, 10.19, Lh				$ 111.83
NI	241868035		Energy Guide		Appelez-nous	-
NIA	241595202		Clip-slide, Crisper				$ 20.22
NIA	241510802		Harness-wiring, Frz Light				$ 46.46
NIAA	241638101		Frame-humidity Control				$ 57.49
NIB	241513101		Harness-wiring		Appelez-nous	-
