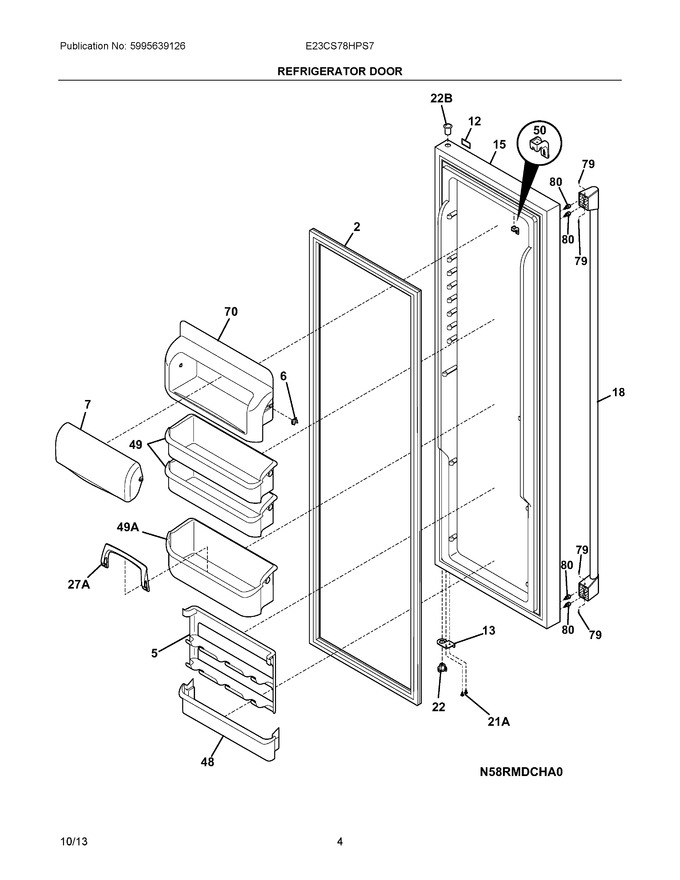

03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510201		Gasket-refr Door, White, Magnetic			Immediately	$ 246.82
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 47.19
7	241515606		Door-dairy   (Replaces: 241515601)				$ 45.51
12	241603101		Label, Nameplate, Elux/icon				$ 89.96
13	240581905		Door Stop, Black, Ref				$ 66.94
15	241837221		Door-refr, Stainless, Complete Assy				$ 589.83
18	241637921		Handle Assembly, Stainless, W/endcaps		Appelez-nous	-
22	242015302		Bearing-hinge(ref), Black, Closer				$ 11.80
48	241511701		Bin-door, Pseudo, Bottom   (Replaces: 241808209)			Immediately	$ 74.68
49	241505301		Bin-door, 2-liter   (Replaces: 241808215)			Immediately	$ 84.89
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy, Removable				$ 197.66
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 27.80
80	218755504		Screw-shoulder, #10 Ab, Handle Mounting			Immediately	$ 21.74
21A	240442708		Screw-#10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 9.27
22B	240328404		Bearing-hinge, Black, Upper				$ 25.41
27A	240396102		Retainer, Tall Bottle				$ 21.26
49A	241505501		Bin-door, Gallon   (Replaces: 241808212)			Immediately	$ 110.03
NIA	241601001		Wrench, Allen		Appelez-nous	-
NIA	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
