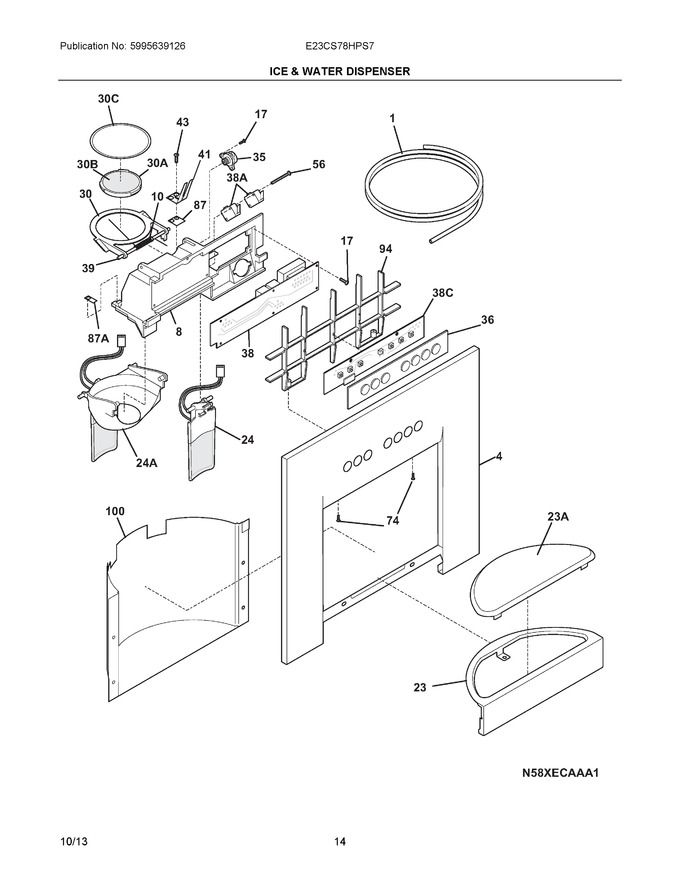

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube, Water, 60", Natural, Door |
|
Immediately | $ 66.94 | ||||
| 4 | 241533207 | Cover-module, Stainless |
|
$ 400.21 | |||||
| 8 | 241680504 | Module-dispenser |
|
$ 183.65 | |||||
| 10 | 241688901 | Spring-torsion |
|
Immediately | $ 23.63 | ||||
| 17 | 241679801 | Screw |
|
$ 15.75 | |||||
| 23 | 241531102 | Drip Tray, Stainless |
|
$ 260.26 | |||||
| 24 | 241685704 | Actuator, Stainless |
|
$ 207.90 | |||||
| 30 | 241688401 | Door Assy-ice Chute |
|
$ 55.13 | |||||
| 35 | 241689301 | Damper-rotary |
|
$ 78.36 | |||||
| 36 | 241533501 | Button Module, Stainless |
|
$ 304.77 | |||||
| 38 | 241527601 | Board-power |
|
$ 475.24 | |||||
| 39 | 241688801 | Pin-hinge |
|
$ 48.04 | |||||
| 41 | 241689001 | Spring-actuator |
|
$ 24.41 | |||||
| 43 | 215296301 | Screw, Plask H/l, #6 X 3/8 |
|
- | |||||
| 56 | 241689201 | Screw-micro Switch, Pan Head |
|
$ 14.96 | |||||
| 74 | 241720001 | Screw, #4 Hilo, (2) |
|
- | |||||
| 87 | 241688302 | Bearing Plate |
|
$ 22.05 | |||||
| 94 | 241533301 | Support, Control Board |
|
$ 42.20 | |||||
| 100 | 241530402 | Liner, Dispen Housing, Stainless |
|
$ 128.31 | |||||
| 23A | 241531601 | Drip Tray Insert |
|
$ 88.10 | |||||
| 24A | 241682304 | Actuator-ice, Stainless |
|
$ 257.88 | |||||
| 30A | 241688501 | Door Center |
|
$ 58.85 | |||||
| 30B | 241688601 | Insulation-door |
|
$ 70.19 | |||||
| 30C | 241688701 | Door Seal |
|
$ 44.95 | |||||
| 38A | 241689106 | Switch-micro, Single Pole, Double Throw (Replaces: 241689101) |
|
Immediately | $ 9.56 | ||||
| 38CA | 241527501 | Board-control |
|
- | |||||
| 87A | 241688301 | Bearing Plate |
|
$ 22.05 | |||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 526.84 | |||||
| NI | 218515403 | Clip-grille |
|
$ 32.29 | |||||
| NI | 241510902 | Harness-dispenser |
|
$ 23.40 | |||||
| NI | 241686201 | Insulator-electrical |
|
- | |||||
| NI | 240552102 | Harness-wiring, Door |
|
$ 77.60 | |||||
| NIA | 218976418 | Tube-water Inlet, Inlet Valve, To Filter |
|
$ 71.66 | |||||
| NIA | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 17.69 | ||||
| NIA | 241533401 | Seal, Foam |
|
- | |||||
| NIB | 218976421 | Tube-water Inlet, Valve To Door |
|
$ 22.84 | |||||
| NIC | 241680001 | Harness-ribbon Cable |
|
- | |||||
| NIC | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 38.59 | |||||
| NID | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker (Replaces: 240561702) |
|
Immediately | $ 22.84 |
