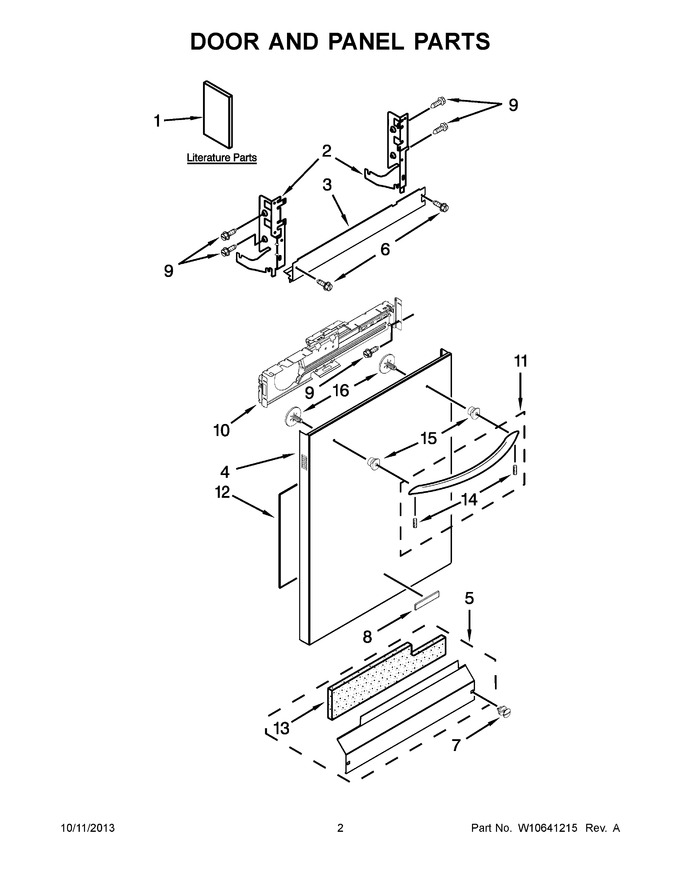

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10580768		Tech Sheet, Spanish		Appelez-nous	-
1	W10380218		Instructions, Installation		Appelez-nous	-
1	W10380252		Use & Care Guide		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Barrier, Vapor Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10323562		Front Panel (includes Items 8, 15 & 16) (stainless)				$ 174.54
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 195.64
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
7	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
8	WPW10393264		Nameplate (grey)   (Replaces: W10393264)				$ 67.74
9	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
10	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
11	W10330970		Handle Assembly (stainless)		Appelez-nous	-
12	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
13	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
14	WP8534008		Screw, Set   (Replaces: 8534008)				$ 9.37
15	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
16	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
