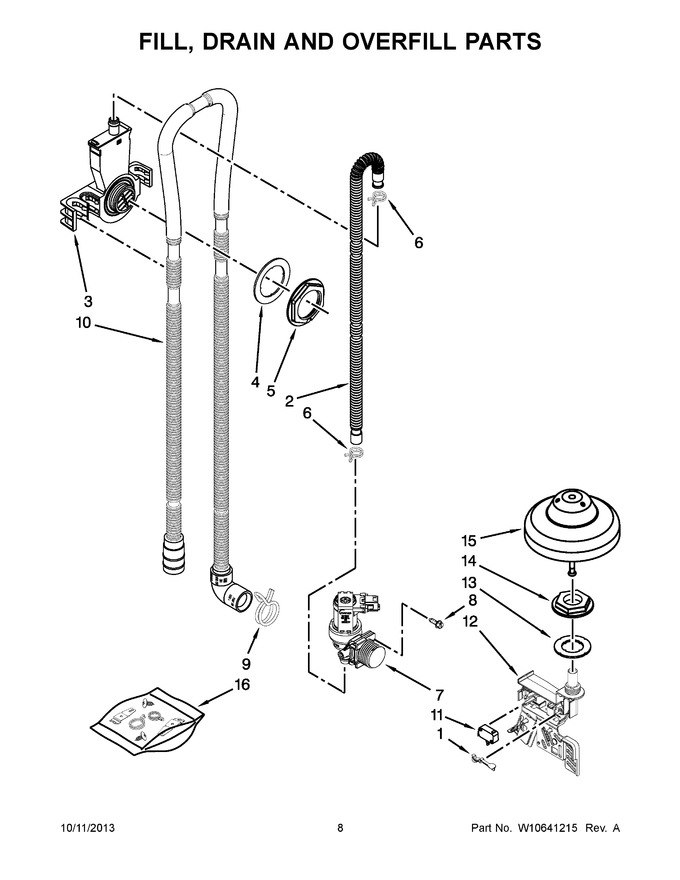

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10195037 | Lever, Overfill Switch (Replaces: W10195037) |
|
Immediately | $ 11.74 | ||||
| 2 | W10878507 | Hose (Replaces: 8531412) |
|
Immediately | $ 77.06 | ||||
| 3 | WPW10195536 | Inlet, Water (also Order Item 4) (Replaces: W10195536) |
|
Immediately | $ 86.31 | ||||
| 4 | WP8531323 | Gasket (Replaces: 8531323) |
|
Immediately | $ 41.07 | ||||
| 5 | WPW10213825 | Nut, Water Inlet (also Order Item 4) (Replaces: W10213825) |
|
$ 8.39 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.82 | ||||
| 7 | WPW10327249 | Fill Valve Assembly (Replaces: W10327249) |
|
Immediately | $ 81.22 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 9 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.82 | ||||
| 10 | WPW10545278 | Drain Loop With Check Valve Assembly (Replaces: W10481093) |
|
Immediately | $ 74.41 | ||||
| 11 | WPW10195039 | Switch, Overfill Control (Replaces: W10195039) |
|
Immediately | $ 77.42 | ||||
| 12 | W10873429 | Housing, Overfill (also Order Item 13) (Replaces: W10195035) |
|
Immediately | $ 24.20 | ||||
| 13 | WP8531743 | Gasket, Flat (Replaces: 8531743) |
|
Immediately | $ 47.27 | ||||
| 14 | WPW10195038 | Nut, Standpipe (Replaces: W10195038) |
|
Immediately | $ 8.42 | ||||
| 15 | WPW10195036 | Float & Retainer Assembly (Replaces: W10195036) |
|
Immediately | $ 88.38 | ||||
| 16 | W10415269 | Miscellaneous Parts Bag ( Includes 2 Screws, Clamps, And Undercounter Brackets) |
|
$ 44.94 |
