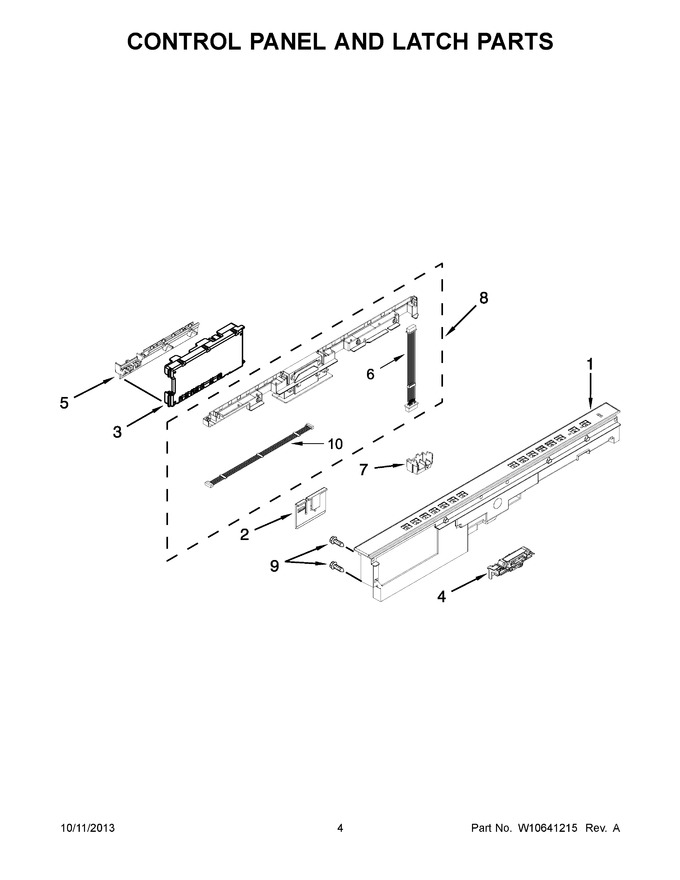

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10380196 | Console Assembly (includes Insert) (grey) |
|
- | |||||
| 2 | W11256107 | Clip. Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | W10595569 | Control, Electronic (Replaces: W10539784) |
|
Immediately | $ 311.61 | ||||
| 4 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10574864) |
|
Immediately | $ 34.18 | ||||
| 5 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 6 | W10300781 | Jumper, 16-wire |
|
$ 33.20 | |||||
| 7 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 31.41 | |||||
| 8 | WPW10629161 | Housing, User Interface (Replaces: W10350262) |
|
$ 372.17 | |||||
| 9 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 10 | W10347251 | Jumper, 10-wire |
|
$ 11.62 |
