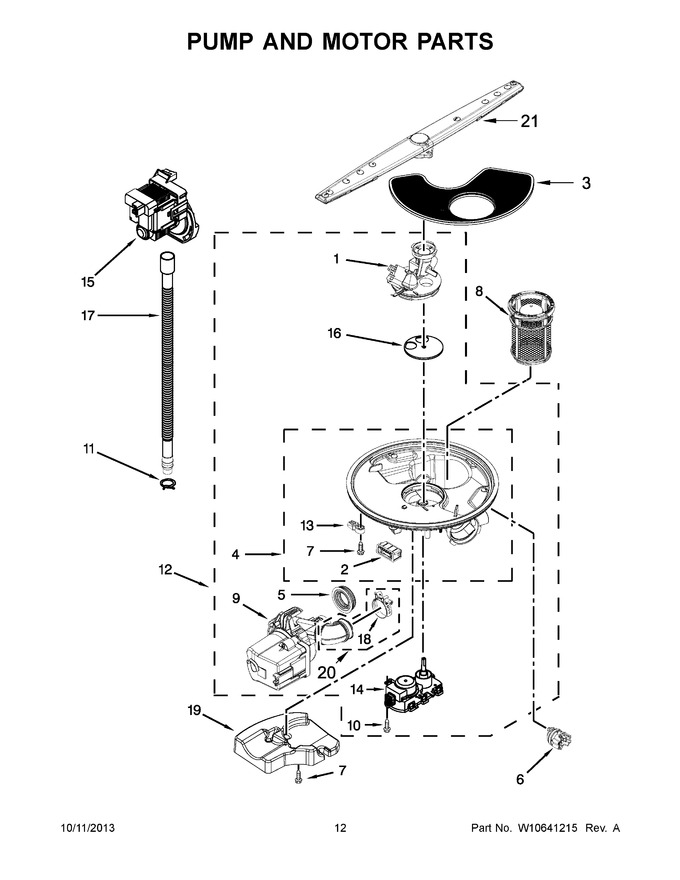

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10455272 | Cover, Outlet (Replaces: W10455272) |
|
Immediately | $ 47.68 | ||||
| 2 | W11243394 | Motor, Isolator (Replaces: W10195086) |
|
$ 13.88 | |||||
| 3 | WPW10463906 | Screen (Replaces: W10463906) |
|
Immediately | $ 36.35 | ||||
| 4 | WPW10455268 | Sump With Seal (also Order Items 5 & 20) (Replaces: W10455268) |
|
Immediately | $ 179.66 | ||||
| 5 | WPW10538166 | Grommet (Replaces: W10538166) |
|
Immediately | $ 40.83 | ||||
| 6 | WPW10705575 | Indicator, Optical Wash (Replaces: W10134017) |
|
Immediately | $ 43.81 | ||||
| 7 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 7.69 | |||||
| 8 | W10872845 | Filter Cup Assembly (Replaces: W10465379) |
|
Immediately | $ 55.08 | ||||
| 9 | W11032770 | Motor (also Order Items 5 & 20) (Replaces: W10529163) |
|
Immediately | $ 229.45 | ||||
| 10 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 11 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.12 | |||||
| 12 | WPW10605058 | Sump & Motor Assembly (Replaces: W10605058) |
|
Immediately | $ 329.41 | ||||
| 13 | WPW10372113 | Tab, Sump (Replaces: W10372113) |
|
Immediately | $ 27.96 | ||||
| 14 | W10537869 | Motor, Diverter (Replaces: W10476222) |
|
Immediately | $ 101.62 | ||||
| 15 | WPW10348269 | Pump, Drain (Replaces: W10084573) |
|
Immediately | $ 97.46 | ||||
| 16 | WPW10476221 | Disc, Diverter (Replaces: W10476221) |
|
Immediately | $ 26.10 | ||||
| 17 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 27.66 | ||||
| 18 | W10789434 | Clamp, Hose (Replaces: W10169167) |
|
Immediately | $ 14.40 | ||||
| 19 | W10350335 | Damper, Sump Assembly (Replaces: W10300776) |
|
$ 89.81 | |||||
| 20 | W10445975 | Hose Assembly (includes 2 Clamps) |
|
Immediately | $ 85.38 | ||||
| 21 | WPW10491331 | Sprayarm (Replaces: W10491331) |
|
Immediately | $ 55.64 |
