SELECT A DIAGRAM

Diagram for 1 - Freezer Door
1 - Freezer Door

Diagram for 2 - Fresh Food Door
2 - Fresh Food Door

Diagram for 3 - Freezer Section
3 - Freezer Section

Diagram for 4 - Evaporator Instructions
4 - Evaporator Instructions

Diagram for 5 - Freezer Shelves
5 - Freezer Shelves

Diagram for 6 - Ice Maker & Dispenser
6 - Ice Maker & Dispenser

Diagram for 7 - Fresh Food Section
7 - Fresh Food Section

Diagram for 8 - Fresh Food Shelves
8 - Fresh Food Shelves

Diagram for 9 - Sealed System & Mother Board
9 - Sealed System & Mother Board


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 49-60636 Pm Guide Owners Appelez-nous -
1 31-51799 Pm Mini Wiring Manual Appelez-nous -
2 WR02X12257 Scr 4-10 Pl Pnp 3/4 Ss Appelez-nous -
7 WR12X20441 Arc Handle Asm Appelez-nous -
9 WR01A01801 Fastener Door Handle   (Replaces: WR01X11007) In-Stock Immediately $ 12.71

9 WR01A00255 Fastener Handle Ss   (Replaces: WR02X12028) In-Stock Immediately $ 15.88

13 WR01A00936 Stop Door   (Replaces: WR02X12353) Special Order $ 12.40

14 WR01L08732 Gasket Door Fz Bk**   (Replaces: WR24X10158) Special Order $ 65.51

15 WR02X10780 Cam Closure Ff Black Appelez-nous -
31 WR17X12864 Grill Recess Appelez-nous -
36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

45 WR2X8818 Retainer Recess Door Appelez-nous -
55 WR01F00145 Board Asm Disp Lighting   (Replaces: WR55X10899) Special Order $ 15.88

58 WR01F01053 Housing Shield Disp   (Replaces: WR17X12500) Special Order $ 22.89

62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 65.21

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.97

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 12.71

69 WR01F00833 Funnel Ice Disp   (Replaces: WR17X12120) Special Order $ 54.09

70 WR01A00414 Paddle Asm   (Replaces: WR17X12889) Special Order $ 12.90

72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 17.47

74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 23.82

80 WR01F02845 Union Connector   (Replaces: WR02X11330) In-Stock Immediately $ 19.06

93 WR55X20624 Interface Dispenser Asm Appelez-nous -
122 WR01L02896 Module Shelf Fz   (Replaces: WR71X10291) Special Order $ 26.70

123 WR71X10501 Module Shelf Fz Fixed Appelez-nous -
854 WR23X10665 Harness Recess Dispensor Appelez-nous -
900 WR78X20450 Door Foam Asm Fz Appelez-nous -
903 WR01X10234 Thimble Door Btm Fz Blac Appelez-nous -
904 WR01X10582 Scr 10-16 Appelez-nous -
911 WR01X10233 Thimble Door Top Black Appelez-nous -
911 WR01X10956 Thimble Door Appelez-nous -
915 WG03A01608 Set Screw   (Replaces: WR01X11014) In-Stock Immediately $ 6.35


    View Diagram in Separate Window     Print Icon   Print Part List

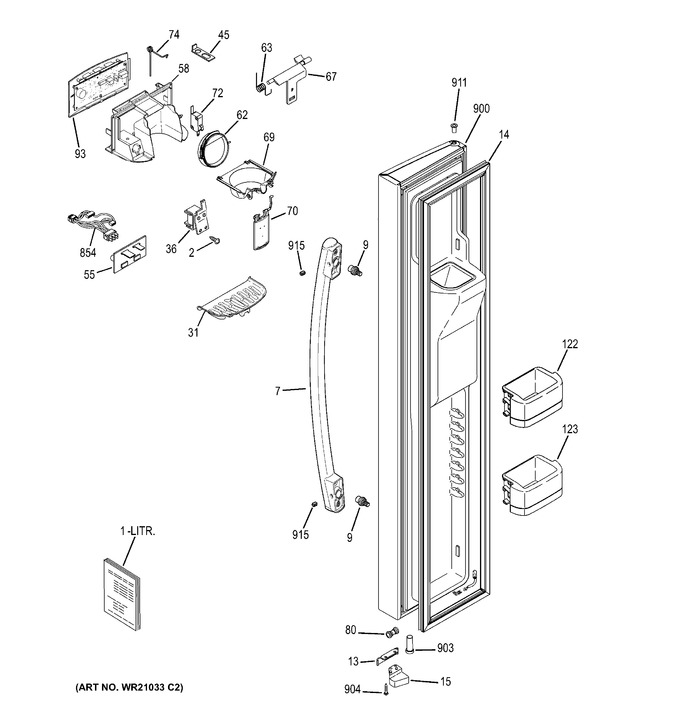

Diagram for PSE26KSEEESS
