SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves

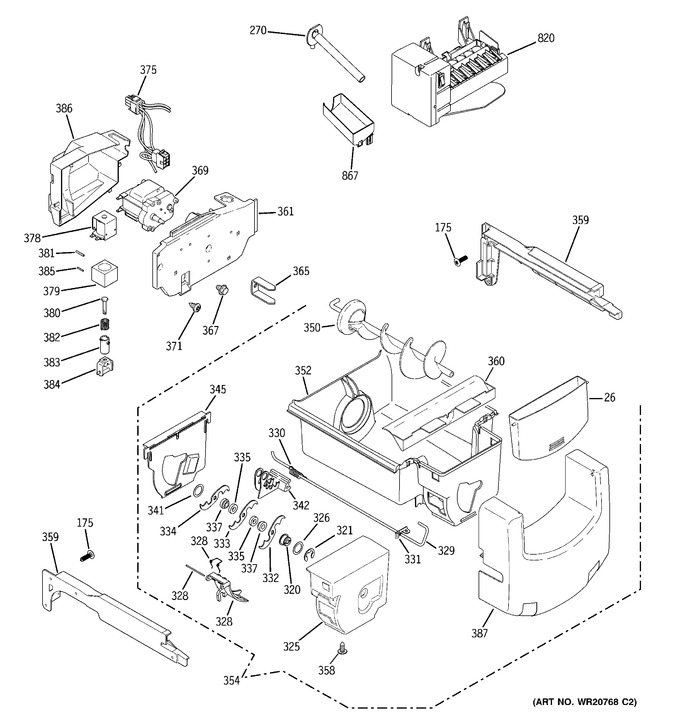

6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
26	WR17X12870		Lid Icemaker Cover		Appelez-nous	-
175	WR01X10035		Screw 8-18 Ab Ihw 5/8 S		Appelez-nous	-
270	WR17X11506		Grommet And Tube Asm		Appelez-nous	-
320	WR01F03224		Coarse Thread Auger Nut   (Replaces: WR01X10315)				$ 6.35
321	WR1X1367		Retainer Ring E		Appelez-nous	-
325	WR17X10717		Housing Crusher Display		Appelez-nous	-
326	WR01A01060		Washer   (Replaces: WR1X1366)				$ 4.20
328	WR2X4561		Spring Ice Deflector		Appelez-nous	-
328	WR2X4143		Pin Deflector Disp		Appelez-nous	-
328	WR17X10703		Deflector Ice Display		Appelez-nous	-
329	WR17X11411		Wire Actuator Disp		Appelez-nous	-
330	WR01A00911		Spring Deflector   (Replaces: WR02X10583)				$ 4.20
331	WR02X10580		Retainer Spring		Appelez-nous	-
332	WR17X11239		Blades Moving Disp		Appelez-nous	-
333	WR17X11240		Blades Moving Disp		Appelez-nous	-
334	WR17X11241		Blades Moving Disp		Appelez-nous	-
335	WR2X4139		Spacer Crusher Middle		Appelez-nous	-
337	WR2X4138		Spacer Crusher Stationar		Appelez-nous	-
341	WR29X10045		Washer Crusher Blade		Appelez-nous	-
342	WR02X10691		Stationary Blades Assy		Appelez-nous	-
345	WR01L00753		Cover Crusher Hsg Disp   (Replaces: WR17X11497)				$ 30.98
350	WR01F00640		Auger Asm Disp   (Replaces: WR17X11939)			Immediately	$ 54.86
352	WR01L00321		Bucket Ice Disp   (Replaces: WR30X10074)				$ 119.89
354	WR17X12138		Bucket & Auger Asm		Appelez-nous	-
358	WR01X10607		Scr 8-18 Ab Phr 1/2 S		Appelez-nous	-
359	WR01F03332		Glide Bucket Lh Disp   (Replaces: WR72X10233)				$ 63.53
359	WR72X10380		Glide Bucket Rh Disp		Appelez-nous	-
360	WR17X11449		Diverter Overflow		Appelez-nous	-
361	WR01L00869		Cover Motor Back   (Replaces: WR17X12323)				$ 62.03
365	WG04F04255		Drive Auger Disp   (Replaces: WR02X11941)				$ 30.18
367	WR01X10618		Scr 8-18 Tpt 1/4		Appelez-nous	-
369	WG03F00432		Motor Crusher Disp   (Replaces: WR60X10258)				$ 193.30
371	WR01X10619		Scr 10-18 Hi/lo Hxw 1/2		Appelez-nous	-
375	WR23X10558		Harness Motor Disp		Appelez-nous	-
378	WR01F00328		Solenoid & Arm Asm   (Replaces: WR62X58)				$ 151.81
379	WR17X12811		Shroud Solenoid		Appelez-nous	-
380	WR01F00328		Plunger Solenoid   (Replaces: WR17X1064)				$ 151.81
381	WR01F00328		Pin Spiral   (Replaces: WR2X4257)				$ 151.81
382	WG03A00097		Spring Solenoid Linkage   (Replaces: WR2X4258)				$ 79.62
383	WR01F00328		Collar Solenoid Disp   (Replaces: WR17X12742)				$ 151.81
384	WG04F00407		Stirrup Solenoid Display   (Replaces: WR17X1066)				$ 95.41
385	WR01F00328		Pin Spiral   (Replaces: WR2X4259)				$ 151.81
386	WR02X12491		Cover Auger Motor		Appelez-nous	-
387	WR17X12869		Cover Bucket Disp		Appelez-nous	-
820	WR30X10061		Pk Pack Imkitwr30x10061		Appelez-nous	-
867	WR29X10058		Cup Fill Im		Appelez-nous	-
