SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

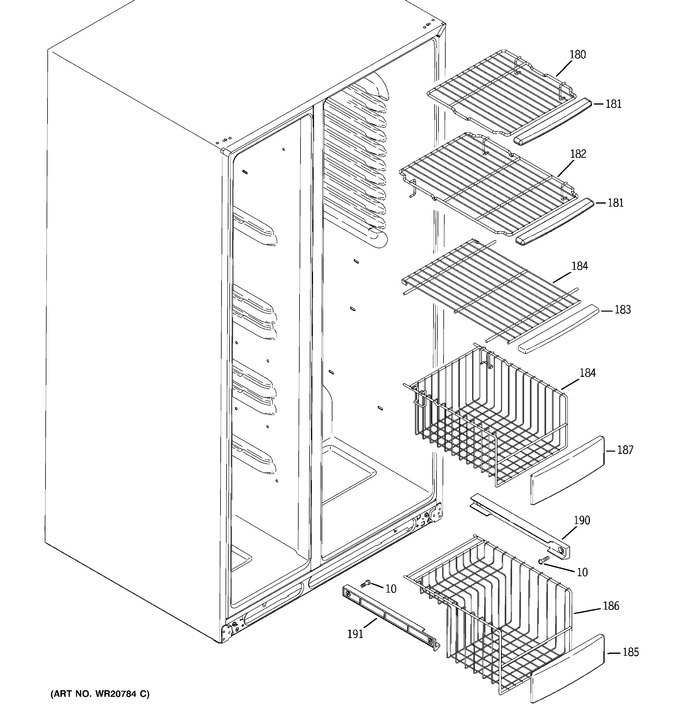

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X10065		Screw 10-32 Gxtt Flp 595		Appelez-nous	-
180	WR71X10704		Shelf Fixed Fz		Appelez-nous	-
181	WR38X10214		Trim Shelf Fz		Appelez-nous	-
182	WR01L03207		Shelf Slideout Fz   (Replaces: WR71X10703)				$ 32.55
183	WR01L02593		Handle   (Replaces: WR12X10626)			Immediately	$ 58.86
184	WR01L00530		Basket Wire Fz   (Replaces: WR21X10060)				$ 82.64
185	WR12X10625		Handle		Appelez-nous	-
186	WR21X10035		Basket Wire Fz Short		Appelez-nous	-
187	WR01L02604		Handle Basket   (Replaces: WR12X10536)				$ 12.71
190	WR17X10916		Slide Basket R H		Appelez-nous	-
191	WR17X10917		Slide Basket L H		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
