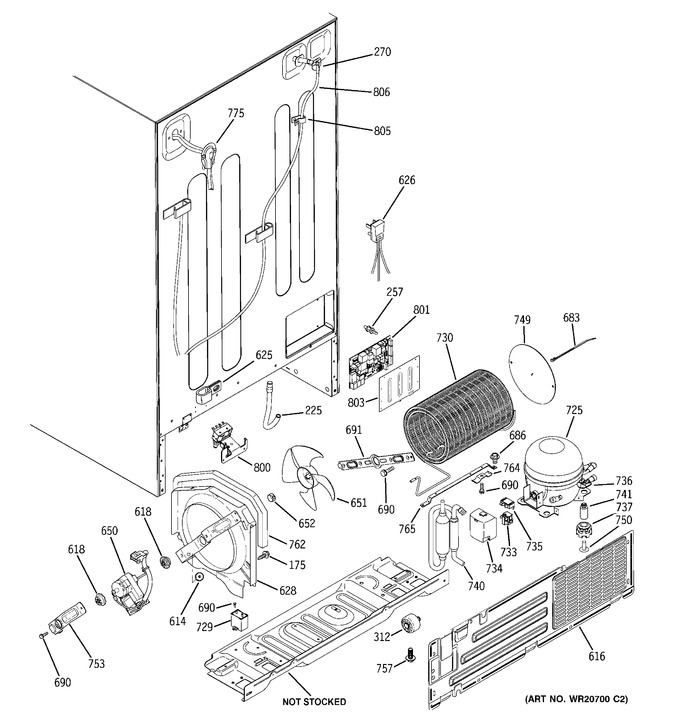

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 175 | WR01X10035 | Screw 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 225 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 36.53 | ||||
| 257 | WR02X10663 | Stand Off |
|
- | |||||
| 270 | WR17X11506 | Grommet And Tube Asm |
|
- | |||||
| 312 | WG03L06838 | Wheel Mobility (Replaces: WR02X10695) |
|
$ 19.06 | |||||
| 614 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 616 | WR01L00714 | Cover Access (Replaces: WR82X10109) |
|
$ 119.45 | |||||
| 618 | WR01A00579 | Grommet Evap Fan (Replaces: WR02X11331) |
|
$ 3.97 | |||||
| 625 | WR01X10684 | Clamp Cable |
|
- | |||||
| 626 | WR23X108 | Power Cord |
|
- | |||||
| 628 | WR01L04391 | Shroud Condenser (Replaces: WR17X12668) |
|
$ 26.20 | |||||
| 650 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 651 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 11.51 | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 683 | WR02X11027 | Wire Tie |
|
- | |||||
| 686 | WR01X10252 | Screw 10-32 Tt Hxw 5/16 |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 691 | WR02X11742 | Bracket Cond Fan |
|
- | |||||
| 725 | WR87X10182 | Compressor Asm Mei |
|
- | |||||
| 729 | WR01F02043 | Capacitor (Replaces: WR62X79) |
|
Immediately | $ 17.17 | ||||
| 730 | WR84X10078 | Condenser & Brkt Asm |
|
- | |||||
| 733 | WG03F01423 | Relay Start (Replaces: WR07X10084) |
|
$ 76.29 | |||||
| 734 | WR02X11999 | Clip Retainer Mei |
|
- | |||||
| 734 | WR02X10556 | Cover Relay Snap (mei) |
|
- | |||||
| 735 | WR08X10100 | Overload |
|
- | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 740 | WG03A03157 | P/s Dryer Kit R134a (Replaces: WR86X96) |
|
Immediately | $ 153.40 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 749 | WR17X11039 | Baffle Cond Air |
|
- | |||||
| 750 | WR1X1786 | Scr 10-32 Tr 1/2 |
|
- | |||||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) |
|
- | |||||
| 757 | WR01X10622 | Scr 10-32 B Ihxw 1/2 |
|
- | |||||
| 762 | WR14X10053 | Foam Strip Se Adh |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X10695 | Bracket Condenser Bar |
|
- | |||||
| 775 | WR17X10796 | Cover Water Line |
|
- | |||||
| 800 | WR57X10040 | Water Valve Assy W/o Gua |
|
$ 71.10 | |||||
| 801 | WR01F00284 | Board Main Combined Hmi (Replaces: WR55X11033) |
|
Immediately | $ 277.91 | ||||
| 803 | WR02X12025 | Main Board Enclosure Asm |
|
- | |||||
| 805 | WR02X12265 | Clamp Tube |
|
- | |||||
| 806 | WR01F01881 | Tube Plastic (Replaces: WR17X11625) |
|
$ 15.88 | |||||
| WR01L00661 | Dairy Shelf |
|
Immediately | $ 34.64 | |||||
| WR01L01269 | Dairy Door |
|
$ 61.06 | ||||||
| WR01L08732 | Gasket (Replaces: WR01L02179) |
|
$ 65.51 | ||||||
| WR01L02587 | Handle Basket |
|
$ 23.00 | ||||||
| WG04F11911 | Valve (Replaces: WG03F00685) |
|
Immediately | $ 123.62 | |||||
| WR01L04509 | Trim Shelf Compartment |
|
$ 11.17 | ||||||
| WR01L07695 | Grille Base |
|
$ 31.08 | ||||||
| WR01L08746 | Hinge Top & Pin Asm |
|
- | ||||||
| WR01L04319 | Shelf Rpl Asm |
|
$ 401.11 | ||||||
| WG03F07790 | Moteur De Ventilateur (Replaces: WG03F04077) |
|
Immediately | $ 145.93 | |||||
| WG03F05740 | Ap5 Sum Board Nidec Ff Fan Kit |
|
$ 196.47 | ||||||
| WG03L02112 | Cover Evap Ff Asm |
|
$ 285.03 | ||||||
| WR01F00284 | Board Main Combined Hmi |
|
Immediately | $ 277.91 | |||||
| WR01F01625 | Motor Therm Dc Evap Fan Asm |
|
Immediately | $ 175.40 | |||||
| WR01F04650 | Blade Evap Fan Asm (Replaces: WR01F03314) |
|
$ 20.54 |
