SELECT A DIAGRAM

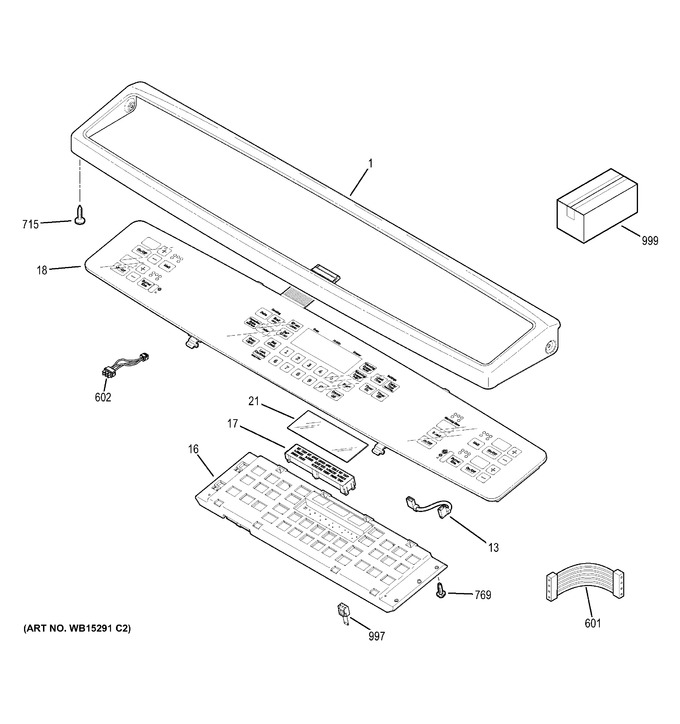

1 - Control Panel
2 - Cooktop
3 - Upper Oven
4 - Lower Oven
5 - Upper Door
6 - Lower Door
7 - Door Lock
8 - Convection Fan
9 - Cooling Fan
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 229C6244P001 | Label Wire Diagram |
|
- | |||||
| 1 | WB36T11353 | Trim Cntl & Gasket Asm |
|
- | |||||
| 13 | WB18T10506 | Jumper |
|
- | |||||
| 16 | WB27X21436 | Control Ui Asm |
|
- | |||||
| 17 | WG02L02080 | Guide & Overlay Asm (Replaces: WB27T11115) |
|
$ 24.78 | |||||
| 18 | WB27X21437 | Glass Cntl & Board Asm |
|
- | |||||
| 21 | WG02F05912 | Filter Clock Display (Replaces: WB27T11116) |
|
$ 11.39 | |||||
| 601 | WB18T10437 | Ribbon Cable Wing Board |
|
- | |||||
| 602 | WB18T10504 | Harness Wire Ui Com |
|
- | |||||
| 715 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 769 | WB1X1118 | Screw-nickel |
|
- | |||||
| 997 | WB02T10535 | Plug Asm Model Selector |
|
- | |||||
| 999 | 31-10781 | Pm Install Instructions |
|
- | |||||
| 999 | 31-17059 | Pm Manual Mini & Wd Asm |
|
- | |||||
| 999 | 49-80637 | Pm Owners Manual |
|
- | |||||
| 999 | 49-80597 | Manual U&c Tip Sheet |
|
- | |||||
| 999 | 31-10661 | Instruction Install |
|
- | |||||
| 999 | 31-10769 | Pm Instructions Install |
|
- |
