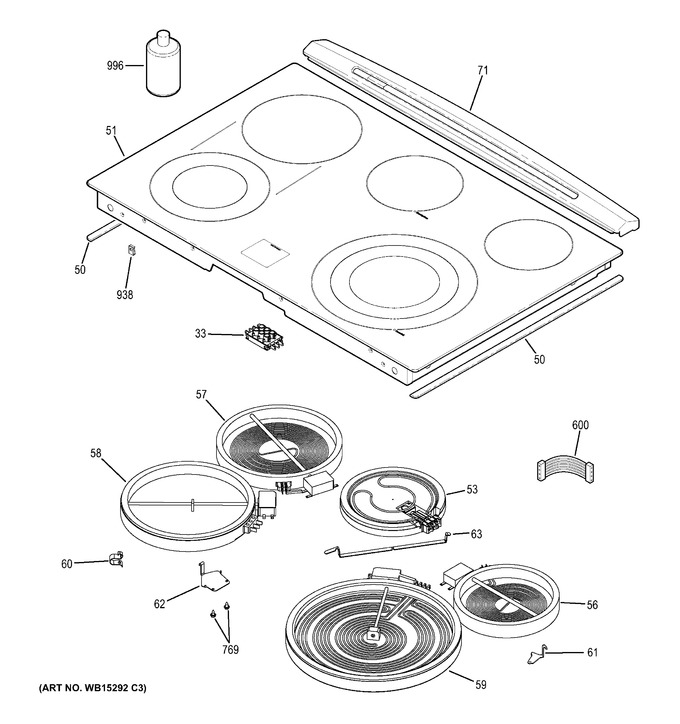

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	WB25T10099		Module Indicator Light		Appelez-nous	-
50	WG02L04240		Gasket Maintop   (Replaces: WB02T10543)				$ 9.25
51	WG02L08014		Maintop Glass Asm (bk)   (Replaces: WB62X20898)			Immediately	$ 1,484.74
53	WB30T10154		Element Warmer Low Prf		Appelez-nous	-
56	WG02F02056		Element Radiant 5.5 In   (Replaces: WB30T10145)			Immediately	$ 133.34
57	WG02F04090		Element Radiant 8 In   (Replaces: WB30T10132)			Immediately	$ 115.25
58	WS01F01178		Element Haliant (dual)   (Replaces: WB30T10135)			Immediately	$ 116.61
59	WG02F07429		Element Haliant 12 Trpl   (Replaces: WB30T10155)			Immediately	$ 194.99
60	WS01A03252		Spring Radiant Element   (Replaces: WB09T10013)			Immediately	$ 4.07
61	WB02X20902		Bracket Radiant Element		Appelez-nous	-
62	WB02X20969		Bracket Rad Element		Appelez-nous	-
63	WB02T10540		Bracket Warmer Supt		Appelez-nous	-
71	WB07T10707		Trim Rear Asm		Appelez-nous	-
600	WB18X21462		Harness Wire Maintop		Appelez-nous	-
769	WB1X1118		Screw-nickel		Appelez-nous	-
938	WB1K5209		Clip		Appelez-nous	-
996	WB64X93		Glass Cleaner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
