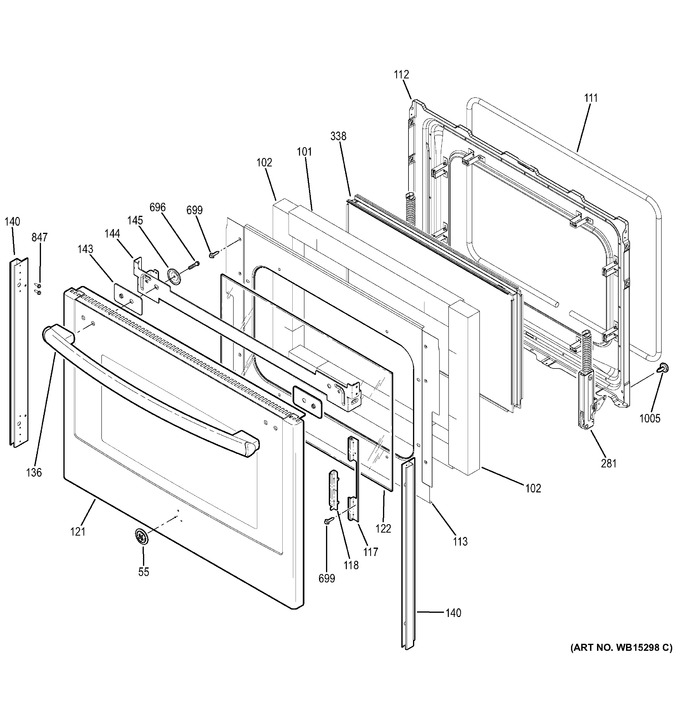

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Cooktop
3 - Upper Oven
4 - Lower Oven
5 - Upper Door
6 - Lower Door
7 - Door Lock
8 - Convection Fan
9 - Cooling Fan
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 55 | WS01A01830 | Badge Ge (Replaces: WB02T10589) |
|
$ 12.86 | |||||
| 101 | WB35T10072 | Insulation Ovn Dr Top |
|
- | |||||
| 102 | WB35K10025 | Insulation Oven Dr Sde |
|
- | |||||
| 111 | WB04T10076 | Gasket Ovn Dr |
|
- | |||||
| 112 | WB63X20852 | Liner Oven Dr Asm |
|
- | |||||
| 113 | WB02T10371 | Retainer Insln Ovn Dr |
|
- | |||||
| 117 | WB56T10320 | Retainer Glass Ovn Dr |
|
- | |||||
| 118 | WB56T10321 | Retainer Glass Ovn Dr |
|
- | |||||
| 121 | WB56X20026 | Panel Asm Bonded Lwr(ss) |
|
- | |||||
| 122 | WG02L00696 | Glass Ovn Dr Inr (Replaces: WB57T10233) |
|
Immediately | $ 180.05 | ||||
| 136 | WS01L15020 | Handle And End Cap Asm (Replaces: WB15T10222) |
|
Immediately | $ 61.96 | ||||
| 140 | WB56X21397 | Frame Door Side |
|
- | |||||
| 143 | WB02X21398 | Spacer Bracket Handle |
|
- | |||||
| 144 | WB34X20853 | Bracket Handle Door |
|
- | |||||
| 145 | WB02T10065 | Spacer Dr Handle |
|
- | |||||
| 281 | WB10T10107 | Hinge Door Lt |
|
- | |||||
| 281 | WB10T10106 | Hinge Door Rt |
|
- | |||||
| 338 | WG02A01873 | Pack Window Asm (Replaces: WB55T10191) |
|
Immediately | $ 130.91 | ||||
| 696 | WG02A00773 | Screw 10-16 X 1.000 Hwh (Replaces: WB01T10066) |
|
$ 4.20 | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 847 | WZ4X245D | Screw-pkg 12 |
|
- | |||||
| 1005 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 | ||||
| WG02L04797 | Panel Side (dg) |
|
$ 92.42 | ||||||
| WG02F07591 | Panel Control |
|
$ 117.20 | ||||||
| WG02F07429 | Element Radiant 3600 |
|
Immediately | $ 194.99 | |||||
| WG02F07428 | Element Warmer Low Prf |
|
$ 103.95 | ||||||
| WG02F06894 | Glass Cntl & Board Asm |
|
$ 699.53 | ||||||
| WG02F06859 | Frame Board Asm |
|
$ 231.96 | ||||||
| WG02F06690 | Ribbon Cable Wing Board |
|
$ 74.34 | ||||||
| WG02F06133 | Board Daughter Relay 6 |
|
$ 142.28 | ||||||
| WG02F06132 | Board Daughter Relay 6 |
|
$ 146.63 | ||||||
| WG02F01585 | Tco Runaway, Monogram |
|
$ 148.14 | ||||||
| WG02F00731 | Blade Asm |
|
Immediately | $ 32.88 | |||||
| WG02A01873 | Pack Window Asm |
|
Immediately | $ 130.91 | |||||
| WG02L02532 | Trim Cntl & Gasket Asm |
|
$ 199.72 | ||||||
| WG02L02979 | Window Pack Asm Upr |
|
$ 102.19 | ||||||
| WG02L08014 | Maintop Glass Asm (bk) (Replaces: WG02L06612) |
|
Immediately | $ 1,484.74 | |||||
| WG02L01603 | Support |
|
$ 4.20 |
