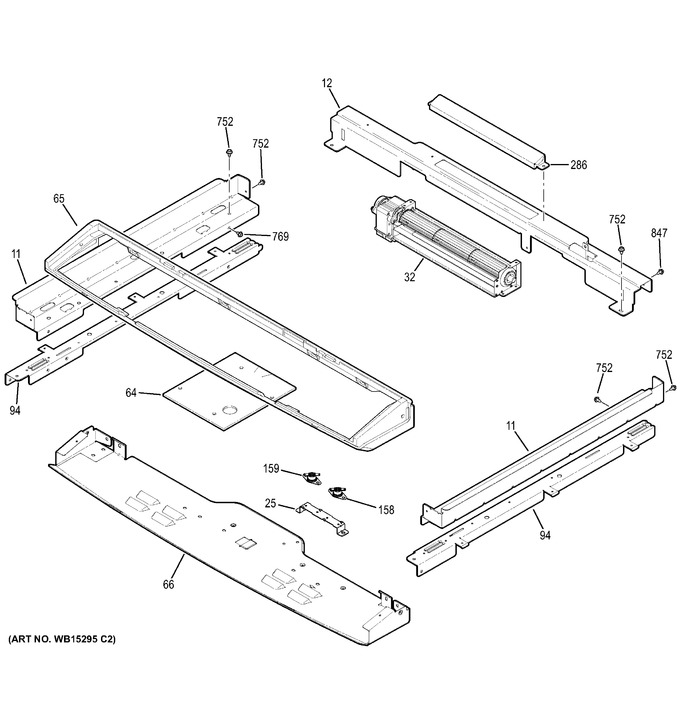

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Cooktop
3 - Upper Oven
4 - Lower Oven
5 - Upper Door
6 - Lower Door
7 - Door Lock
8 - Convection Fan
9 - Cooling Fan
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | WB07T10721 | Extension Side Lt |
|
- | |||||
| 11 | WB07X20967 | Extension Side Rt |
|
- | |||||
| 12 | WB02T10537 | Bracket Trim Supt |
|
- | |||||
| 25 | WB02T10583 | Bracket Switch |
|
- | |||||
| 32 | WB26T10063 | Blower Asm |
|
- | |||||
| 64 | WB35X21466 | Insulation Enclosure |
|
- | |||||
| 65 | WB56X21467 | Panel Control |
|
- | |||||
| 66 | WB34X21465 | Enclosure Control |
|
- | |||||
| 94 | WB02T10539 | Brace Chassis Dc Lt |
|
- | |||||
| 94 | WB02T10538 | Brace Chassis Dc Rt |
|
- | |||||
| 158 | WB24T10177 | Switch Limit Bimetal |
|
- | |||||
| 159 | WB24T10178 | Switch Limit Bimetal |
|
- | |||||
| 286 | WB38T10038 | Barrier Vent Rear |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 769 | WB1X1118 | Screw-nickel |
|
- | |||||
| 847 | WZ4X245D | Screw-pkg 12 |
|
- |
