SELECT A DIAGRAM

01 - Cover


02 - Control Panel

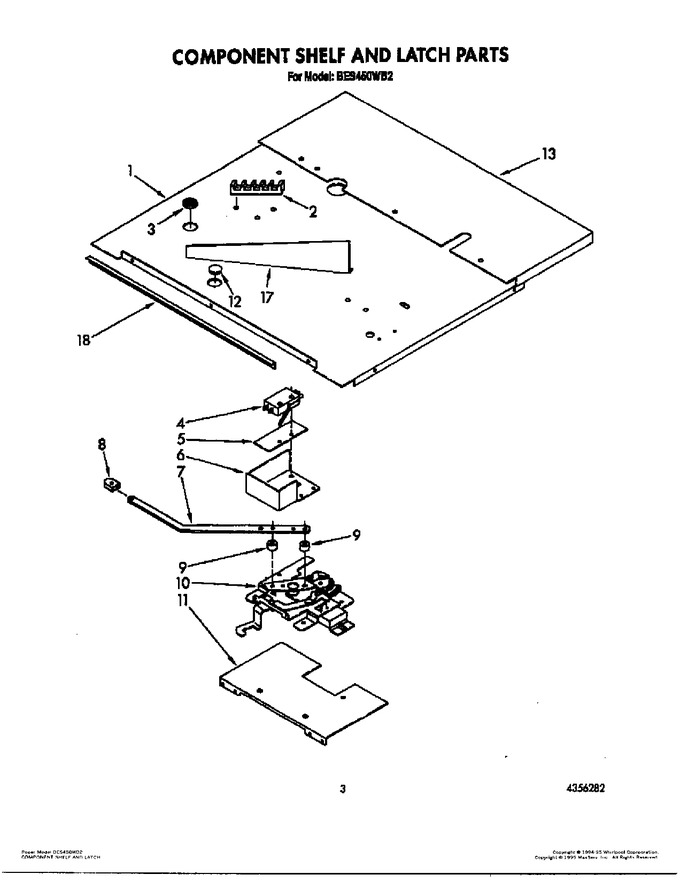

03 - Component Shelf And Latch


04 - Upper Oven


05 - Lower Oven


06 - Oven Liner


07 - Upper Oven Door


08 - Lower Oven Door


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178090		Shelf, Component		Appelez-nous	-
1	3148443		Screw (7)		Appelez-nous	-
2	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 30.13
3	4159035		Bushing		Appelez-nous	-
4	3178670		Switch, Latch		Appelez-nous	-
4	98106		Screw (2)		Appelez-nous	-
5	3178185		Insulator, Switch		Appelez-nous	-
6	254225		Screw (2)		Appelez-nous	-
6	WP3177991		Screw (1)   (Replaces: 3177991)			Immediately	$ 7.55
6	3177662		Guard, Latch		Appelez-nous	-
7	3179950		Screw (2)		Appelez-nous	-
7	3177969		Handle, Latch		Appelez-nous	-
8	3183294		Screw		Appelez-nous	-
8	3183293		Knob, Latch Handle		Appelez-nous	-
9	3177986		Spacer, Handle		Appelez-nous	-
10	3178410		Latch, Mechanism		Appelez-nous	-
10	WP3177991		Screw (3)   (Replaces: 3177991)			Immediately	$ 7.55
11	3179116		Screw (2)		Appelez-nous	-
11	3148443		Screw (8)		Appelez-nous	-
11	3177496		Plate, Mounting		Appelez-nous	-
12	3179777		Plug, Button		Appelez-nous	-
13	3178133		Extension, Shelf		Appelez-nous	-
13	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 7.55
13	WP112432		Nut, Hex   (Replaces: 112432)				$ 8.63
17	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 7.55
17	3180693		Baffle, Air		Appelez-nous	-
18	WP3177991		Screw (3)   (Replaces: 3177991)			Immediately	$ 7.55
18	3180690		Shield, Heat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
