Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3177491 Liner, Oven Appelez-nous -
2 3185383 Screw (6) Appelez-nous -
2 WP660579 Element, Broil   (Replaces: 660579) Special Order $ 164.26

3 4396923 Grill, Broiler   (Replaces: 3147563) In-Stock Immediately $ 60.71

4 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 60.71

5 3185383 Screw (2) Appelez-nous -
5 3180694 Bracket, Element Appelez-nous -
6 3185370 Rack, Oven Appelez-nous -
7 3185383 Screw (2) Appelez-nous -
7 WP661416 Element, Bake   (Replaces: 661416) Special Order $ 153.22

8 3148440 Sensor, Heat (upper Oven) Appelez-nous -
9 3182950 Bracket, Element Appelez-nous -
10 3184208 Plate, Cover Appelez-nous -

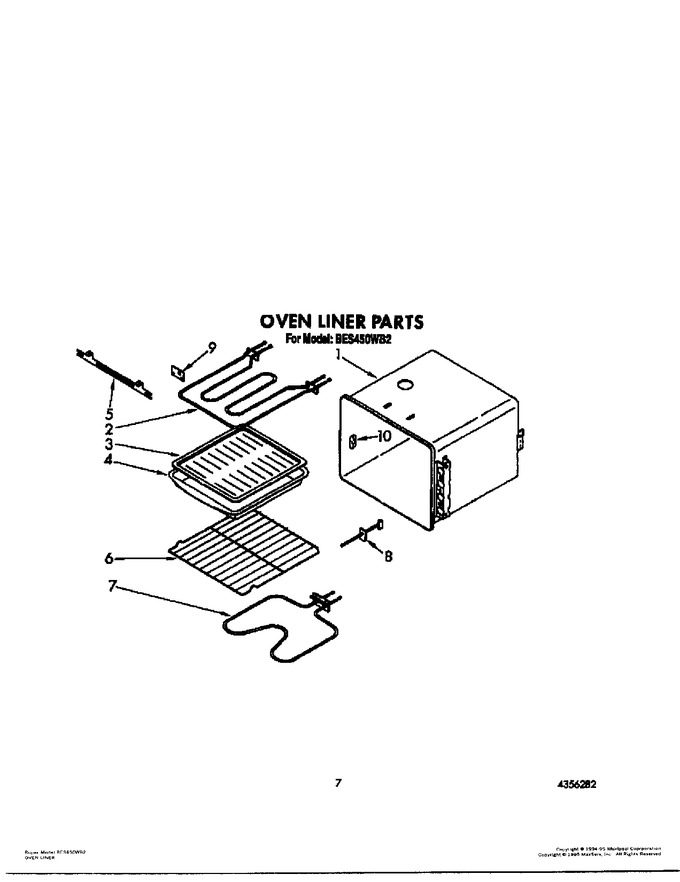

    View Diagram in Separate Window     Print Icon   Print Part List
