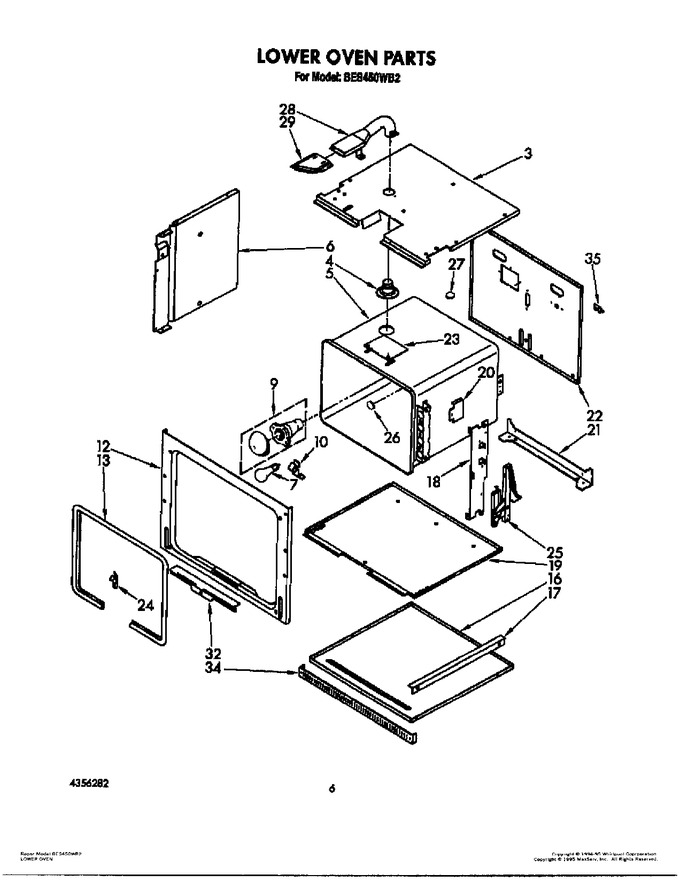

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3183747		Module, Top		Appelez-nous	-
3	3148443		Screw (8)		Appelez-nous	-
4	3181700		Tube, Vent		Appelez-nous	-
4	3179117		Screw (3)		Appelez-nous	-
5	3177491		Liner, Oven		Appelez-nous	-
6	3148443		Screw (4)		Appelez-nous	-
6	3177572		Side, Module (r.h. & L.h.)		Appelez-nous	-
7	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
9	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 87.01
10	98005642		Clip, Bulb (2)   (Replaces: 313382)			Immediately	$ 87.08
12	3177704		Frame, Door		Appelez-nous	-
13	3179814		Seal, Door		Appelez-nous	-
16	3177552		Bottom, Oven		Appelez-nous	-
17	3148443		Screw (4)		Appelez-nous	-
17	3179220		Rail, Support (2)		Appelez-nous	-
18	3177433		Bracket, Hinge (2)		Appelez-nous	-
18	3148443		Screw (2)		Appelez-nous	-
18	3179795		Screw (6)		Appelez-nous	-
19	3177622		Bottom, Module		Appelez-nous	-
20	3178612		Shield, Radiation		Appelez-nous	-
20	3148443		Screw (2)		Appelez-nous	-
21	3148443		Screw (2)		Appelez-nous	-
21	3177434		Support, Oevn		Appelez-nous	-
22	3177559		Back, Module		Appelez-nous	-
22	3148443		Screw (8)		Appelez-nous	-
23	3180126		Cover, Latch Mtg.		Appelez-nous	-
23	3179117		Screw (2)		Appelez-nous	-
24	3179848		Clip, Seal (3)		Appelez-nous	-
25	3179795		Screw (4)		Appelez-nous	-
25	3178298		Hinge, Door (2)		Appelez-nous	-
26	3185108		Button, Plug		Appelez-nous	-
27	3185109		Button, Plug		Appelez-nous	-
28	3179945		Tube, Vent		Appelez-nous	-
28	3148443		Screw (3)		Appelez-nous	-
29	3181964		Tube, Vent		Appelez-nous	-
32	3179587		Retainer, Seal		Appelez-nous	-
32	W11233072		Screw   (Replaces: 4159450)			Immediately	$ 14.72
34	3177784		Trim, Lower Vent		Appelez-nous	-
35	3177870		Insulation, Back		Appelez-nous	-
35	4168203		Cover, Cap Tube		Appelez-nous	-
35	4159445		Screw		Appelez-nous	-
35	3177865		Insulation, Wrap		Appelez-nous	-
