01 - Cover
02 - Control Panel
03 - Component Shelf And Latch
04 - Upper Oven
05 - Lower Oven
06 - Oven Liner
07 - Upper Oven Door
08 - Lower Oven Door
09 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

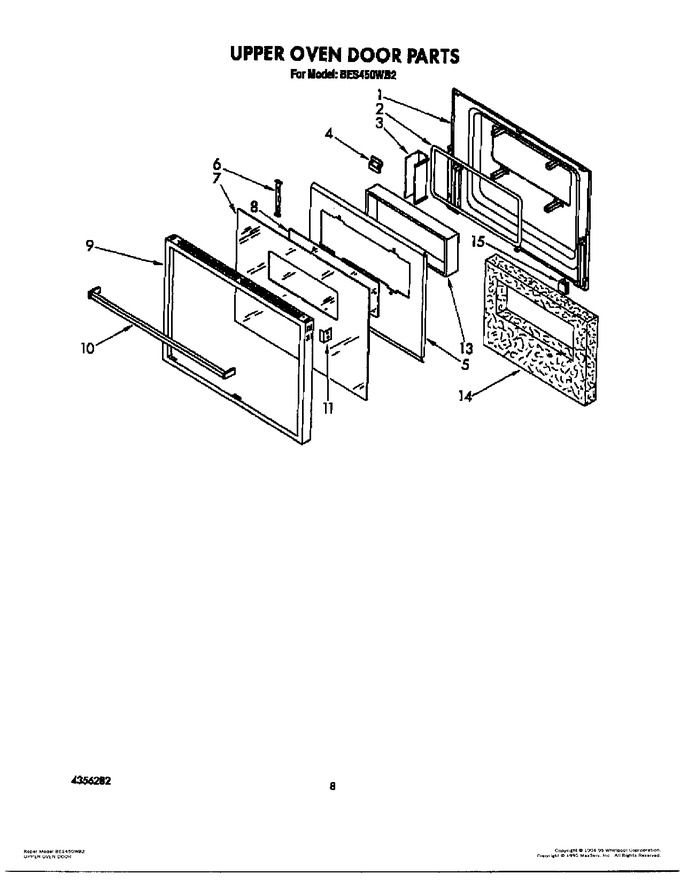

| 1 | 3177597 | Liner, Door |
|
- | |||||
| 1 | 4168863 | Screw (6) |
|
- | |||||
| 1 | 3178001 | Screw (2) |
|
- | |||||
| 2 | 3178584 | Seal, Window |
|
- | |||||
| 3 | 3179694 | Spacer, Window |
|
- | |||||
| 4 | 3148443 | Screw (2) |
|
- | |||||
| 4 | 3177831 | Latch, Strike |
|
- | |||||
| 5 | 3148443 | Screw (4) |
|
- | |||||
| 5 | 3177719 | Retainer, Insulation |
|
- | |||||
| 6 | 4163855 | Bracket, Glass Mounting (2) |
|
- | |||||
| 6 | 3148443 | Screw (4) |
|
- | |||||
| 7 | 310706 | Clip, Glass (16) |
|
- | |||||
| 7 | 3180637 | Glass, Door |
|
- | |||||
| 8 | 4164243 | Glass, Reflective |
|
- | |||||
| 9 | 3180635 | Frame, Door |
|
- | |||||
| 10 | 3180654 | Handle, Door |
|
- | |||||
| 10 | 3181924 | Screw (4) |
|
- | |||||
| 11 | 3181850 | Clip (2) |
|
- | |||||
| 13 | 4164235 | Window Package |
|
- | |||||
| 14 | 3180094 | Insulation, Door |
|
- | |||||
| 15 | 3181723 | Bumper, Door Glass |
|
- |
