SELECT A DIAGRAM

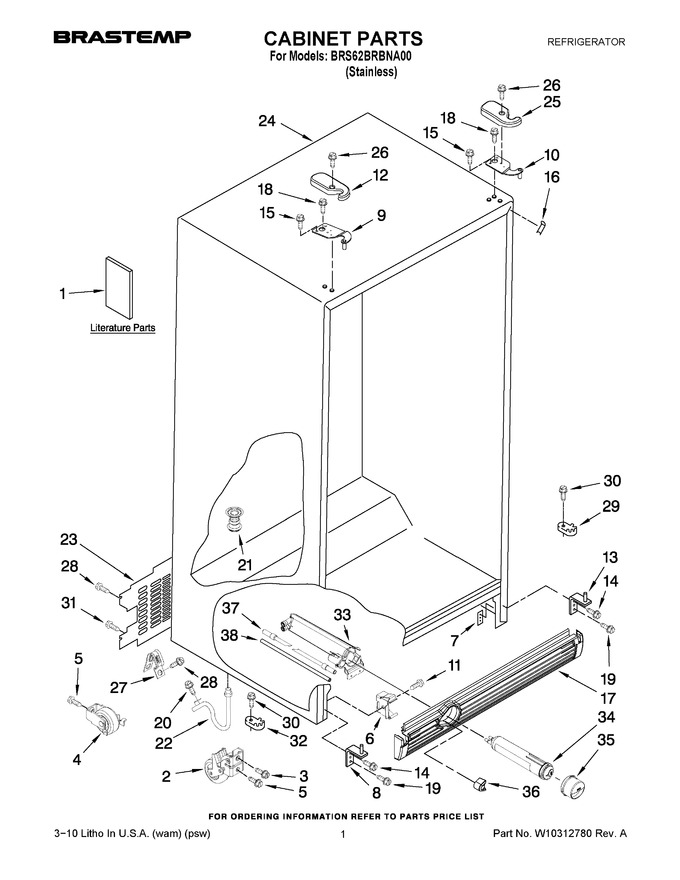

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10158852		Use & Care Guide		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: W10250570)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP2304249		Screw Plate (2)   (Replaces: 2304249)				$ 14.23
8	W10289530		Hinge Bottom Fc		Appelez-nous	-
9	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
10	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
11	WP489128		Screw   (Replaces: 488500)				$ 10.88
12	W10138584		Hinge Cover, Fc				$ 15.17
13	W10289528		Hinge Bottom Rc		Appelez-nous	-
14	WP489497		Screw (4)   (Replaces: W10029670)			Immediately	$ 29.09
15	3400858		Screw		Appelez-nous	-
16	W10851579		Filler, Wrapper   (Replaces: W10283961)			Immediately	$ 7.19
17	W10184882		Grille		Appelez-nous	-
18	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
19	W10856122		Screw (2)   (Replaces: 3400103)				$ 7.76
20	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
21	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
22	W11512417		Extension Tube   (Replaces: W10153550)				$ 34.79
23	2220757		Cover, Unit		Appelez-nous	-
24	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
25	W10138579		Hinge Cover				$ 35.68
26	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
27	549193		Clamp-service Cord				$ 13.39
28	WP488488		Screw   (Replaces: 489290)				$ 7.68
29	WPW10329686		Door Closer, Lower Cam Rc   (Replaces: 2155311)			Immediately	$ 5.43
30	WP489483		Screw (2)   (Replaces: W10029680)				$ 10.87
31	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
32	W11778262		Door Closer, Lower Cam Fc   (Replaces: 2223751)				$ 11.08
33	WPW10121138		Housing, Filter   (Replaces: W10121138)			Immediately	$ 112.91
34	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
35	WP2260518MG		Cap, Water Filter   (Replaces: 2260502MG)				$ 56.03
36	2260503MG		Button, Water Filter				$ 27.01
37	WP2304697		Tube, Filter Inlet   (Replaces: 2304697)				$ 137.59
38	WPW10350006		Tube, Filter Inlet   (Replaces: 2255012)				$ 115.54

    View Diagram in Separate Window       Print Part List
