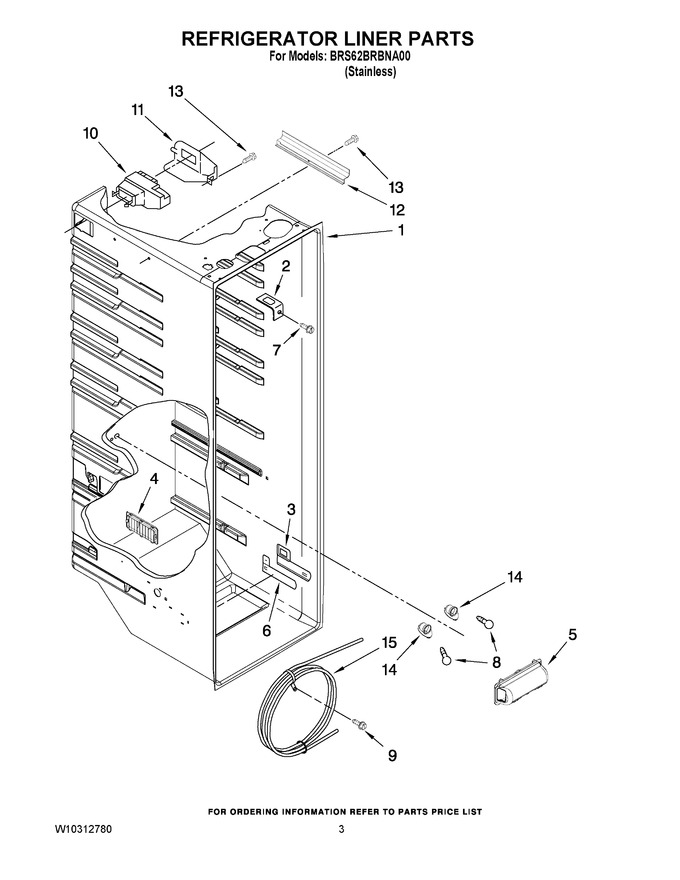

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 34.38
3	W10175967		Escutcheon, Meat Pan Control				$ 77.20
4	2257741		Louver		Appelez-nous	-
5	W11239891		Light Lens   (Replaces: W10166019)				$ 96.69
6	2182757		Slide Meat Pan Control				$ 75.15
7	WP488488		Screw   (Replaces: 489290)				$ 7.68
8	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
9	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
10	WPW10151378		Air Diffuser Assembly   (Replaces: W10151378)				$ 311.55
11	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 131.57
12	2150331		Cover, Conduit				$ 24.40
13	W10759522		Screw   (Replaces: 486298)				$ 7.75
14	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
15	WP2256126		Reservoir   (Replaces: 2256100)				$ 168.85

    View Diagram in Separate Window       Print Part List
