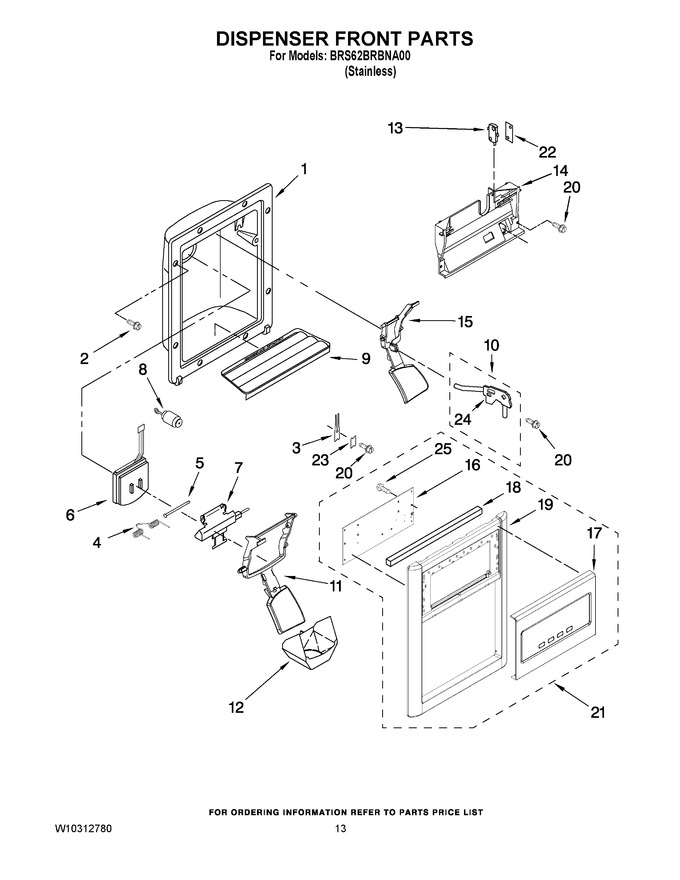

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11245710 | Screw (Replaces: W10029710) |
|
Immediately | $ 14.75 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 12.36 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2304772) |
|
$ 87.40 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 15.31 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 26.83 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | W10171992 | Grille, Overflow |
|
$ 93.12 | |||||
| 10 | 2318280 | Water Fitting Assembly (includes Water Tube) |
|
- | |||||
| 11 | W10155162 | Lever, Ice Dispenser |
|
$ 68.97 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 30.02 | ||||
| 13 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 28.71 | ||||
| 14 | W10728484 | Bracket, Control (Replaces: W10206221) |
|
$ 60.19 | |||||
| 15 | W10155162 | Lever, Water Dispenser |
|
$ 68.97 | |||||
| 16 | N/P | Control Board, Lcd (not Available Order No.21) |
|
- | |||||
| 17 | N/P | Fascia, Disp (not Available Order No.21) |
|
- | |||||
| 18 | W10194025 | Gasket |
|
- | |||||
| 19 | N/P | Bezel, Disp (not Available, Order No.21) |
|
- | |||||
| 20 | W10029740 | Screw |
|
- | |||||
| 21 | W10201249 | Front Cover Assembly (includes Items 16, 17, 18 & 19) (nickle One) |
|
- | |||||
| 22 | 625834 | Spacer, Switch (2) |
|
$ 7.99 | |||||
| 23 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 12.54 | |||||
| 24 | WP2304673 | Bracket, Dispenser (Replaces: 2318279) |
|
$ 16.38 | |||||
| 25 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 |
