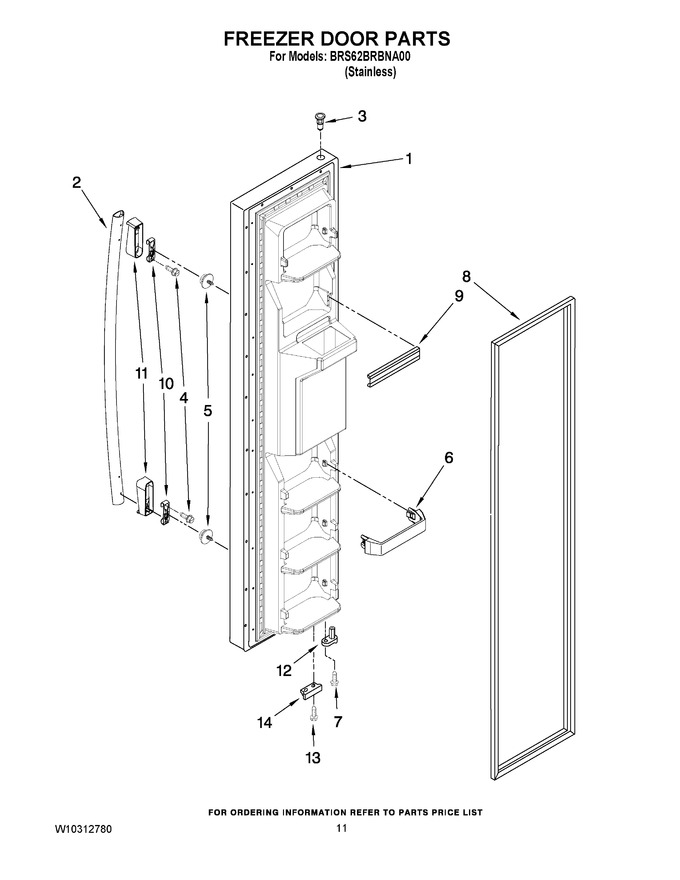

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10211987		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	WPW10257118K		Handle   (Replaces: W10257118)				$ 196.99
3	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
4	W10267047		Screw   (Replaces: W10201588)				$ 13.47
5	WPW10288153		Stud, Handle   (Replaces: W10129563)			Immediately	$ 9.65
6	W10154907		Trivet (4)		Appelez-nous	-
7	W10029760		Screw		Appelez-nous	-
8	W10136733		Door Gasket, Magnetic   (Replaces: 2327162)				$ 358.98
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307489)			Immediately	$ 24.27
10	WP2255411		Screw   (Replaces: 2255411)				$ 36.55
11	W10127772		End Cap				$ 49.75
12	2323535		Door Closer, Upper Cam				$ 33.97
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2323534AP		Bracket, Door Stop		Appelez-nous	-
