SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

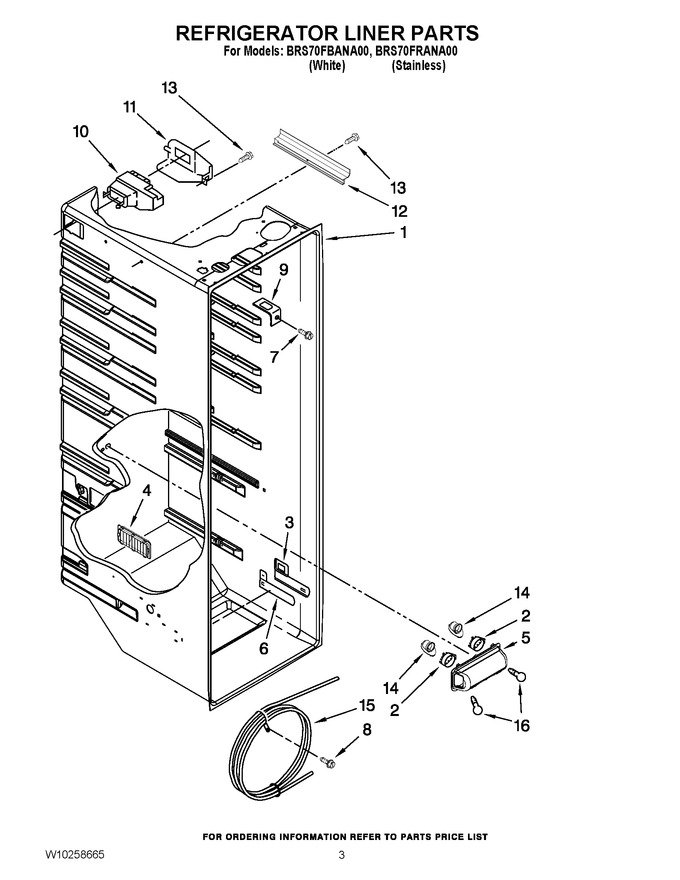

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP2175210		Shroud   (Replaces: 2169193)				$ 82.61
3	W10175967		Escutcheon, Meat Pan Control				$ 77.20
4	2257741		Louver		Appelez-nous	-
5	W11239891		Light Lens   (Replaces: W10242623)				$ 96.69
6	2182757		Slide Meat Pan Control				$ 75.15
7	WP488488		Screw   (Replaces: 489290)				$ 7.68
8	WPW10141645		Screw Crisper Light   (Replaces: 489084)				$ 7.67
9	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 34.38
10	WPW10151372		Air Diffuser Assembly   (Replaces: W10151372)				$ 148.96
11	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 131.57
12	2150331		Cover, Conduit				$ 24.40
13	W10759522		Screw   (Replaces: 486298)				$ 7.75
14	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
15	WP2256126		Reservoir   (Replaces: 2256100)				$ 168.85
16	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67

    View Diagram in Separate Window       Print Part List
