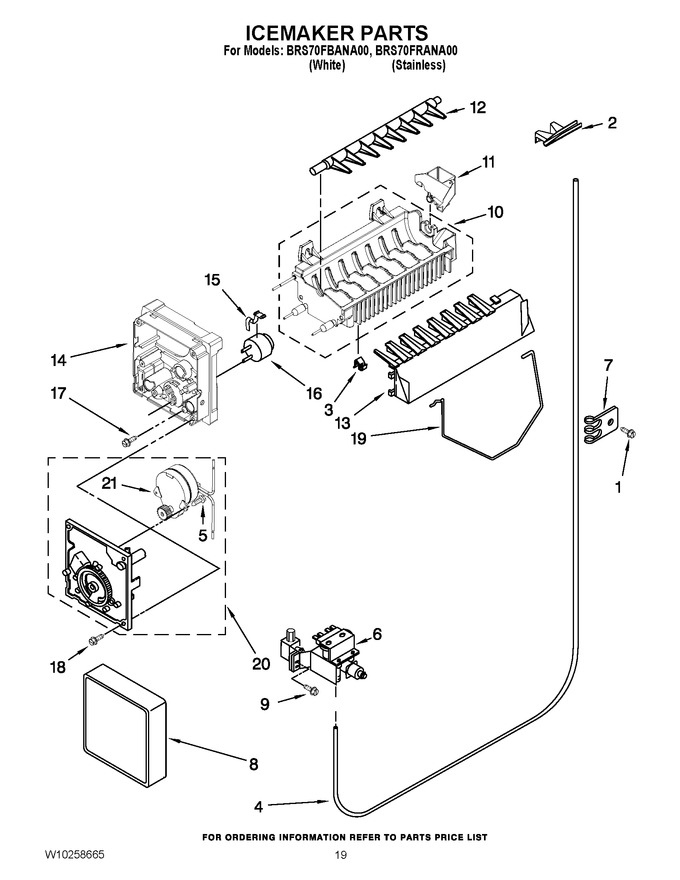

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 33.64 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 4 | W10823511 | Tube, Water (Replaces: W10357068) |
|
Immediately | $ 32.41 | ||||
| 5 | 489136 | Screw |
|
$ 10.29 | |||||
| 6 | W10408179 | Filter Valve Asm (Replaces: 2188708) |
|
Immediately | $ 96.38 | ||||
| 7 | 489348 | Tube Clip |
|
- | |||||
| 8 | W10289697 | Cover |
|
- | |||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 10 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces: 628228) |
|
$ 233.15 | |||||
| 11 | W10122561 | Cup, Water Fill |
|
$ 27.77 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 13 | WPW10122563 | Ice Striper (Replaces: W10122563) |
|
$ 94.69 | |||||
| 14 | WP2195914 | Support (Replaces: 2195914) |
|
$ 104.57 | |||||
| 15 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 16 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 109.18 | |||||
| 17 | 8533917 | Screw |
|
$ 13.37 | |||||
| 18 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 19 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 60.20 | ||||
| 20 | 8201515 | Module Assembly (includes No.21) (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 21 | NP | Motor (not Serviced, Order No.20) |
|
- | |||||
| 100 | WPW10190965 | Complete Icemaker Assembly (Replaces: W10270037) |
|
Immediately | $ 105.08 |
