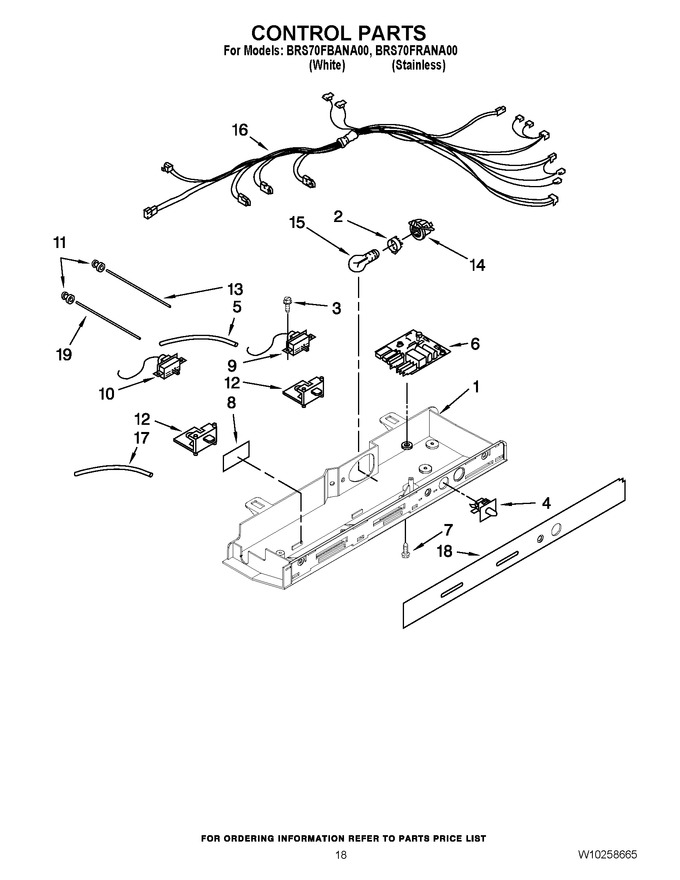

11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box   (Replaces: 2200134)		Appelez-nous	-
2	WP2175210		Shroud, Light   (Replaces: 2175210)				$ 82.61
3	2006254		Screw   (Replaces: 489214)				$ 13.13
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	WP2196003		Tube Barrier   (Replaces: 2196003)				$ 7.95
6	4388932		Electronic Control, Defrost   (Replaces: 2303824)			Immediately	$ 267.09
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	2172940		Window		Appelez-nous	-
9	WPW10320574		Thermostat   (Replaces: W10320574)				$ 265.36
10	WP2321289		Thermostat   (Replaces: 2321289)				$ 230.19
11	2172906		Grommet		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 21.22
13	2179920		Light Bar (rc)				$ 37.08
14	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
15	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
16	2310117		Control Box Harness		Appelez-nous	-
17	WP2196003		Tube Barrier, Thermostat   (Replaces: 2182150)				$ 7.95
18	W10239827		Cover Control Front		Appelez-nous	-
19	2179921		Light Bar (fc)		Appelez-nous	-
