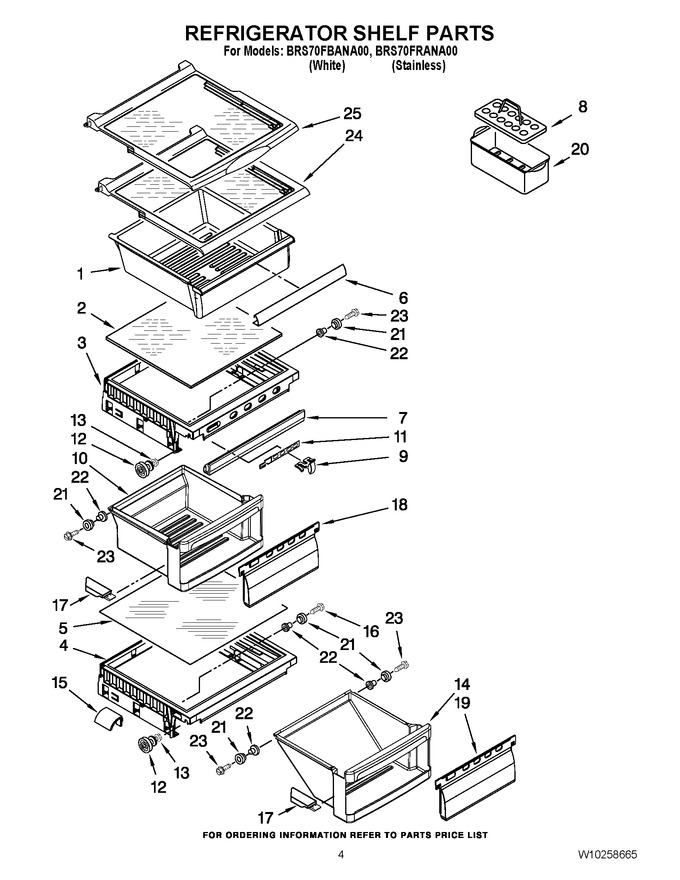

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2309517 | Snack Pan (Replaces: 2309518) |
|
$ 133.06 | |||||
| 2 | W10160480 | Glass Cover |
|
- | |||||
| 3 | W10160318 | Cover, Crisper |
|
$ 99.57 | |||||
| 4 | WP2223357 | Cover, Meat Pan (Replaces: 2223357) |
|
$ 272.45 | |||||
| 5 | W10160481 | Glass Cover |
|
$ 87.92 | |||||
| 6 | WP2179243 | Trim, Handle (Replaces: 2309519) |
|
$ 109.65 | |||||
| 7 | WP1125528 | Gasket (front) (Replaces: 2223361) |
|
$ 161.69 | |||||
| 8 | WP2177817 | Egg Carrier (Replaces: 2164373) |
|
$ 18.78 | |||||
| 9 | 2319720 | Button Humidity Control |
|
- | |||||
| 10 | W10216365 | Crisper Pan Asm |
|
$ 120.87 | |||||
| 11 | 2174252 | Slide, Humidity Control |
|
$ 15.93 | |||||
| 12 | W11223328 | Stud Assembly (Replaces: W10173126) |
|
Immediately | $ 14.77 | ||||
| 13 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 9.14 | |||||
| 14 | W10216364 | Meat Pan Assembly |
|
- | |||||
| 15 | 2176095 | Deflector |
|
$ 91.67 | |||||
| 16 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 17 | 2223286 | Cap, Corner (right Side) |
|
$ 20.18 | |||||
| 17 | 2223285 | Cap, Corner (left Side) |
|
$ 22.34 | |||||
| 18 | 2174076 | Window, Crisper |
|
$ 80.62 | |||||
| 19 | WP2174362 | Window, Meat Pan (Replaces: 2174362) |
|
$ 179.76 | |||||
| 20 | W10136387A | Egg Bin (Replaces: 2311722) |
|
$ 19.54 | |||||
| 21 | 2188212 | Roller |
|
- | |||||
| 22 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 23 | WP489261 | Screw (Replaces: 489261) |
|
$ 8.33 | |||||
| 24 | WPW10276341 | Shelf Assembly, Snack Pan (Replaces: W10276341) |
|
$ 217.50 | |||||
| 25 | WPW10276348 | Shelf Assembly, Spillguard (Replaces: W10276348) |
|
Immediately | $ 223.91 |
