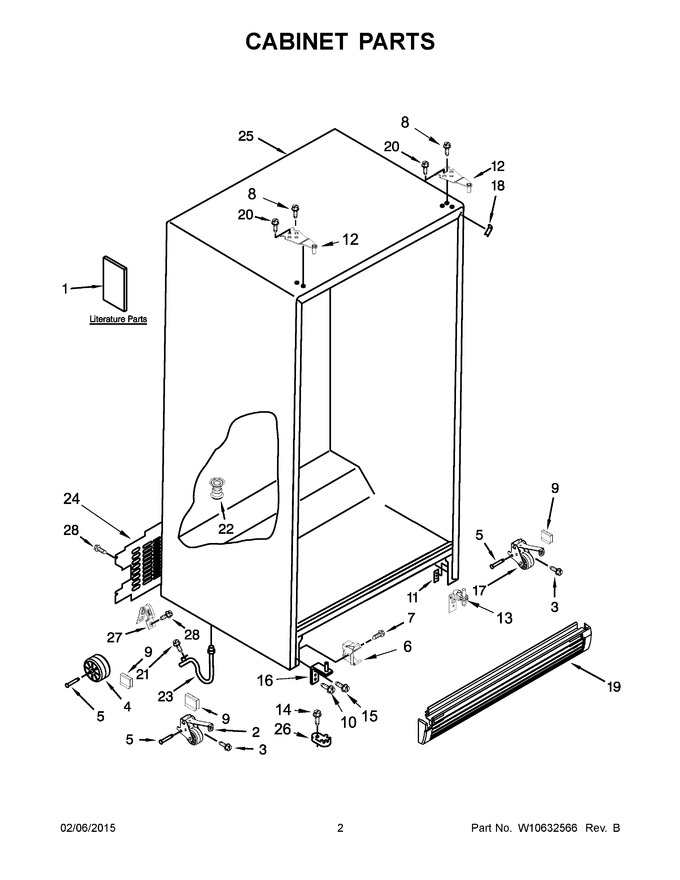

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10581529 | Use & Care Guide Taiwan |
|
- | |||||
| 2 | WPW10304660 | Left Hand (Replaces: W10304660) |
|
Immediately | $ 73.90 | ||||
| 3 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 4 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 19.12 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 8 | W10336489 | Screw |
|
$ 15.05 | |||||
| 9 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 10 | W10856122 | Screw (Replaces: 3400103) |
|
$ 8.27 | |||||
| 11 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 14.94 | |||||
| 12 | W11579508 | Door Hinge Assembly (white) (Replaces: W10402730) |
|
$ 38.78 | |||||
| 13 | W11049959 | Hinge Bottom Rc (Replaces: W10409481) |
|
$ 79.86 | |||||
| 14 | WP489483 | Screw (Replaces: W10142234) |
|
$ 11.41 | |||||
| 15 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 16 | W10646418 | Hinge Bottom Fc (Replaces: W10414753) |
|
Immediately | $ 40.67 | ||||
| 17 | WPW10304659 | Right Hand (Replaces: W10304659) |
|
Immediately | $ 68.52 | ||||
| 18 | WPW10283959 | Filler, Wrapper (white) (Replaces: W10283959) |
|
$ 8.21 | |||||
| 19 | WPW10449698 | Grille (white) (Replaces: W10449698) |
|
$ 200.79 | |||||
| 20 | WPW10308750 | Screw (white) (Replaces: W10308750) |
|
$ 73.29 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 36.53 | |||||
| 24 | W10466698 | Unit Cover, Bottom |
|
$ 103.75 | |||||
| 25 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 26 | W11778262 | Closer, Door (freezer) (Replaces: 2223751) |
|
$ 11.63 | |||||
| 27 | W11234470 | Clamp, Power Cord (Replaces: W10303628) |
|
$ 22.12 | |||||
| 28 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 1A | W10581530 | Use & Care Guide Chinese |
|
- | |||||
| 1B | W10640578 | Service & Wiring Sheet |
|
- |
