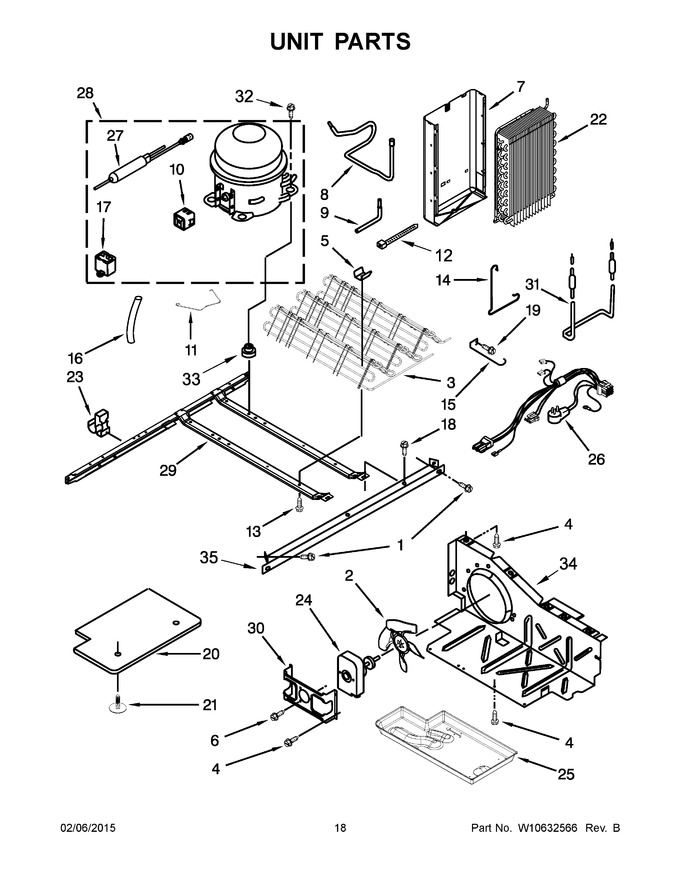

10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	489340		Bolt		Appelez-nous	-
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Assembly, Condenser				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 19.38
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	W10194475		Assembly, Heat Shield And Drain Pan		Appelez-nous	-
8	W10576260		Tube, Suction		Appelez-nous	-
9	2325479		Tube, Process		Appelez-nous	-
10	W10896198		Device, Start   (Replaces: 2304884)				$ 195.21
11	2223314		Bale Strap		Appelez-nous	-
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
13	W11544659		Screw   (Replaces: 8281232)				$ 14.35
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	1110663		Guard, Fan		Appelez-nous	-
16	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
17	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 99.49
18	WP489427		Screw   (Replaces: 489427)				$ 7.84
19	WP489478		Screw   (Replaces: 489478)				$ 8.18
20	W10466698		Unit Cover, Bottom				$ 103.75
21	489396		Clip				$ 11.26
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
23	W10812039		Clip, Wire   (Replaces: 2326941)				$ 11.12
24	WP2188874		Motor, Condenser   (Replaces: W10508362)			Immediately	$ 113.96
25	WPW10614158		Tray, Evaporator   (Replaces: W10614158)			Immediately	$ 113.18
26	W10417918		Harness, Unit				$ 109.84
27	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
28	W10139462		Compressor (also Order 876765 Tube Kit)   (Replaces: W10120457)				$ 668.33
29	W10196321		Frame, Unit Mounting		Appelez-nous	-
30	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.93
31	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
32	W11417341		Screw   (Replaces: W10476309)				$ 14.07
33	WPW10169124		Grommet   (Replaces: 10835903)			Immediately	$ 7.55
34	W10332806		Baffle, Air				$ 102.82
35	W10196313		Rail, Unit Mounting		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	N/P		Refrigerant Charge 5.3 Oz. (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access			Immediately	$ 134.49
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
