SELECT A DIAGRAM
New Model Search:

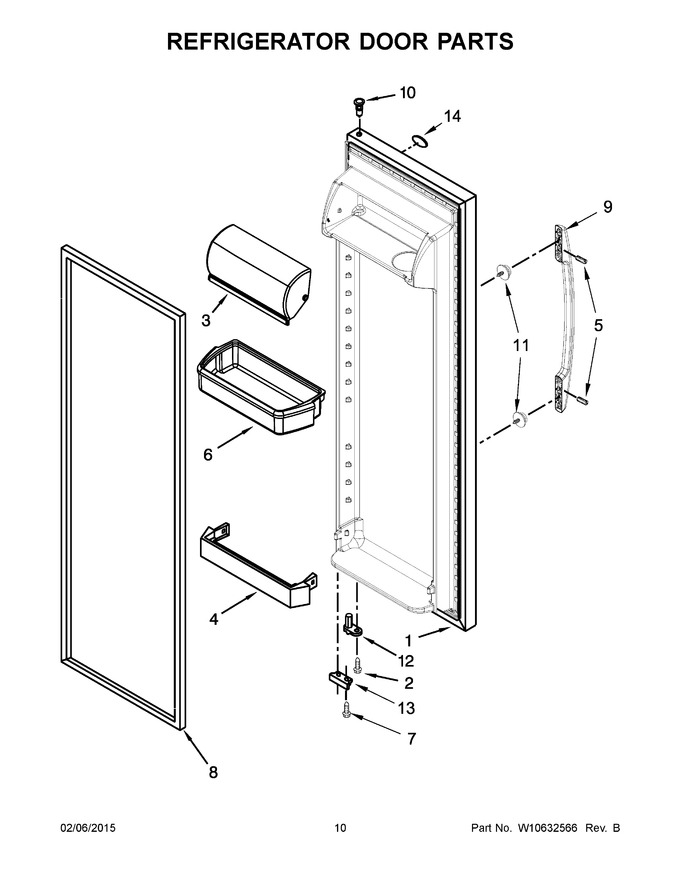

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10407713 | Refrigerator Door (includes Item #8) (white) |
|
- | |||||
| 2 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 4 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 5 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 6 | WPW10321304 | Bin, Door (Replaces: W10549739) |
|
Immediately | $ 44.73 | ||||
| 7 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 8 | 2159075 | Door Gasket, Magnetic (service) (beige) (Replaces: 2309528) |
|
Immediately | $ 333.00 | ||||
| 9 | WPW10439228 | Handle (white) (Replaces: W10439228) |
|
$ 249.66 | |||||
| 10 | WP2182181 | Thimble (Replaces: 2182181) |
|
$ 8.15 | |||||
| 11 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 12 | WP2182179 | Door Closer, Upper Cam (thimble, Cam) (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 13 | W10219801 | Bracket, Door Stop (silver) |
|
$ 5.27 | |||||
| 14 | WPW10170766 | Nameplate (badge) (Replaces: W10170766) |
|
Immediately | $ 70.50 |
