Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 WPW10151372 Air Diffuser Assembly   (Replaces: W10151372) Special Order $ 156.41

3 WP2212240 Cover, Air Diffuser   (Replaces: 2212240) Special Order $ 138.15

4 W10550195 Louver Appelez-nous -
5 WPW10515058 Led Light Assembly, Flat Lens   (Replaces: W10515058) In-Stock Immediately $ 37.12

6 WPW10141645 Screw   (Replaces: 489084) Special Order $ 8.05

7 WPW10515057 Led Light Assembly, Tapered Lens   (Replaces: W10515057) In-Stock Immediately $ 47.29

8 2150331 Cover, Wiring Special Order $ 25.62


    View Diagram in Separate Window     Print Icon   Print Part List

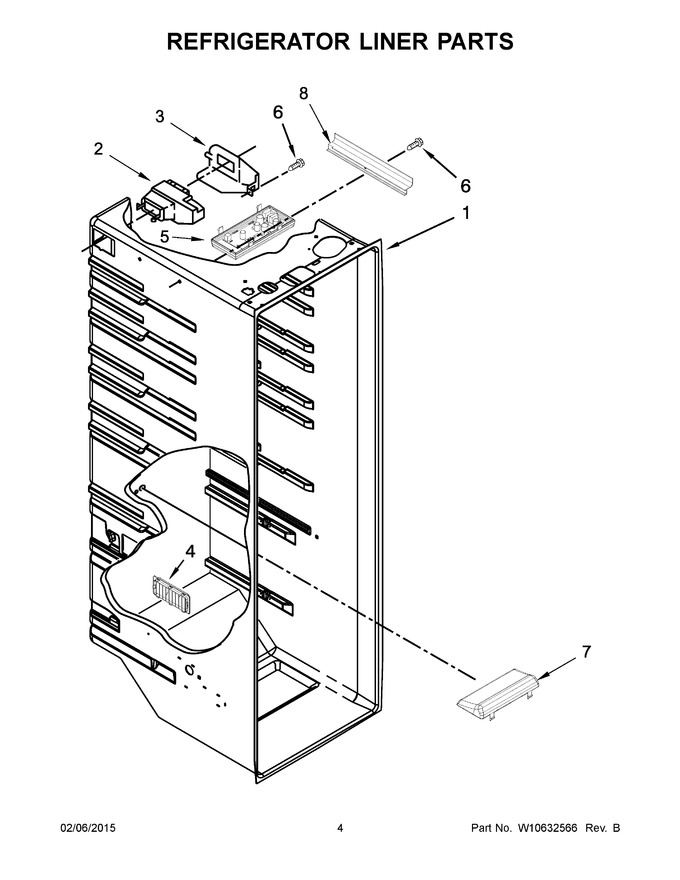

Diagram for 8MSF25N4BW00
